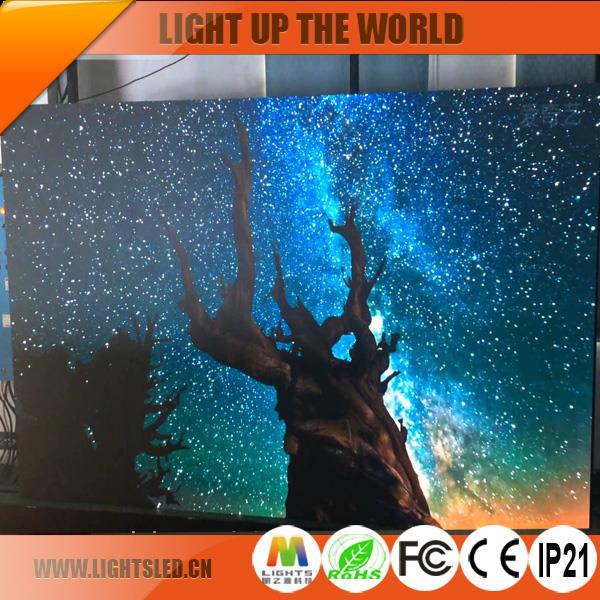

Item | P1.667 Rental LED Display |
Pixel Pitch | 1.667mm |
Pixels Density | 360000dots/sqm |
Pixel Configuration | 3IN1 |
Package Mode | SMD 3IN1 -1010 |

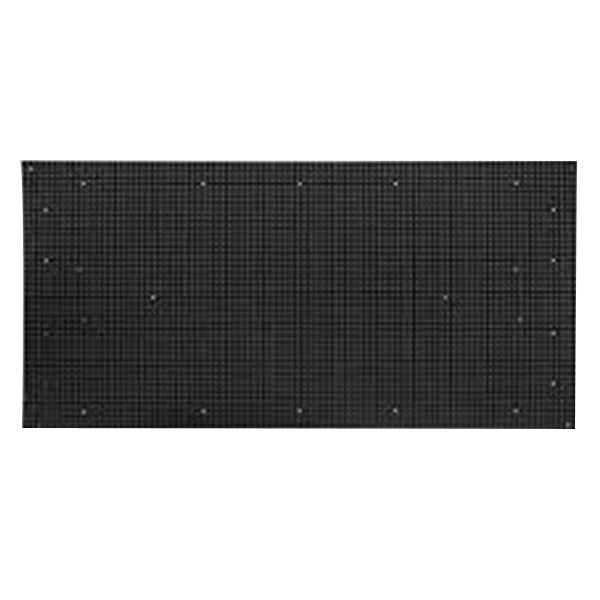

Module Size(W*H*D) | 200*100*14.75mm |
Module Weight | 0.4kg |
Module Resolution(W*H) | 120*60dots |
Module Max Power | 25W |
Scan Mode | 1/30scan |
Port Type | HUB75E |
Brightness of White Balance | >1200cd/sqm |

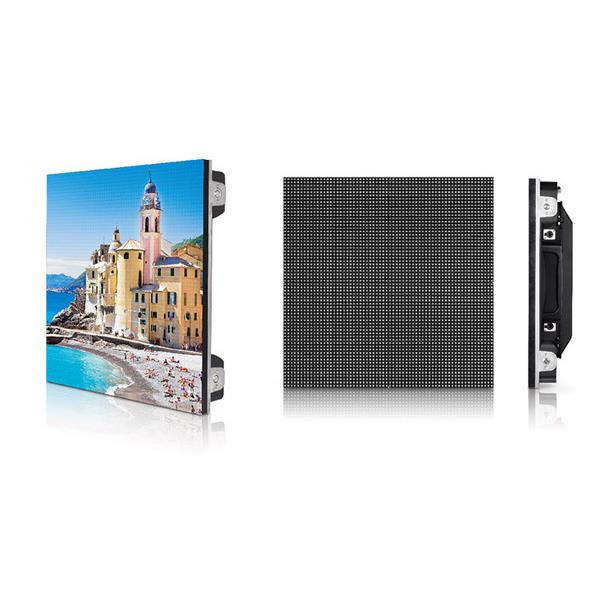

Cabinet Dimension(W*H*D) | 400*300*85mm |
Cabinets Material | Die Casting Aluminum Cabinet |
Cabinet Weight | 9kg |
Best Viewing Distance | 1.7m-10m |
Best Viewing Angle | 140(W) 120(H) |
Temperature | storage; -35oC-85oC; working; -20oC-50oC |
Working Voltage | AC220V |
Average Power Consumption | 450W/sqm |
Max.Power Consumption | <1200W/sqm |
Current | <18mA(single LED) |
Control Method | Synchronization |
Refresh Frequency | >1200HZ |
Grey Scale/Colors | 4096gray level/16.7M colors |
Life-span | 50000 hours |
MTBF | >9000hours |
Power Switch | Automatic switch |
Display Mode | >800*600/1024*768 |
Protection Level(front/back) | IP31/IP54 |
Software | Nova Studio |
Language | Chinese, Traditional Chinese, English, French, Spanish, Korean, Japanese |
Certificate | CE, ROHS, FCC, ISO9001 |
Product Features
1) 400*300mm High Precise Die-Cast Aluminum Cabinet, Easy For Installation.
2) High Level IC Driver MBI5153, endow it with 16bit color depth and 1920HZ refresh rate.
3) Supper High Definition with a 270,400 pixel per square meter.
4) Black SMD1010 are used, improve its contrast rate.
5) High definition, high color depth , and high refresh rate, ensure its finest video and image present.
Important Knowledge of LED Display
1. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
2. How to proceed an order for led Display?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
3. Is it OK to print my logo on led cabinet backside?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
4. Diversified products
Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers.
5. What payment methods your company accept?
We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
