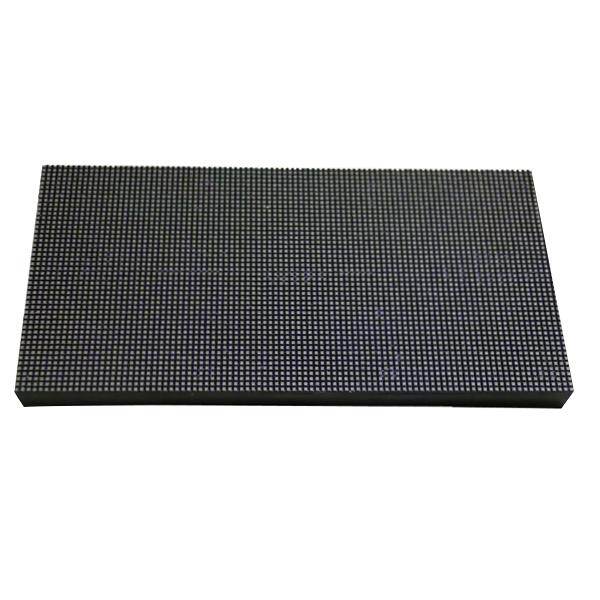

Item | HD P1.5 Full Color LED Panel |
Model Number | P1.5 |
Pixel Pitch | 1.5mm |
Pixel Density(dots/m²) | 444444 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD1010 |
Module size(mm) | 120*120 |
Module Resolution(dots) | 80*80 |
Min.Viewing Distance(m) | ≥1.5 |
Brightness(cd/m²) | ≥1000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 350-600 |
Scan Mode | 1/36 |
Protection Level | IP21 |
Cabinet Size(mm) | 360*360 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame freauency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | ＜120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Power Supply | Domestic Power Supply |
Product Features

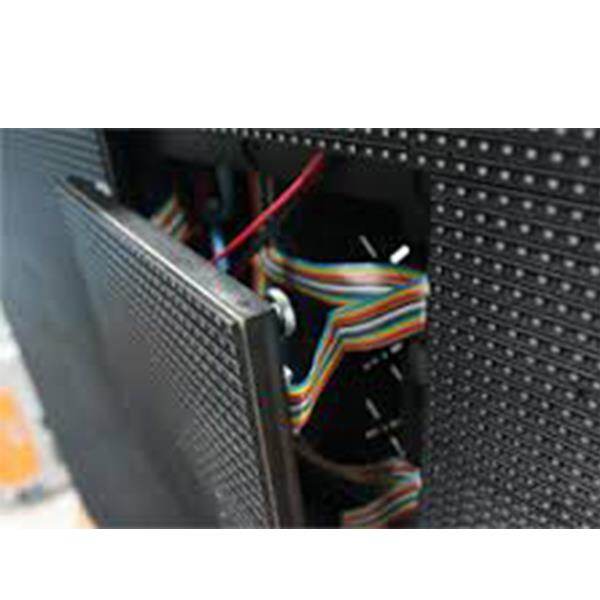

1) Magnetic front service, easy to assemble and disassemble the modules from front side.
2) Slim cabinet, only 73mm thick.
3) Light weight, only 9.5KG for 608x342mm cabinet.
4) Non-gaps between cabinets, due to accurate-made die-cast Aluminum cabinet.
5) Fast lock design, good rental hanging solution.
Important Knowledge of LED Display
1. What details need to be provided to get a quotation?
The buyer needs to provide pixel pitch,usage,dimension of screen and as more details as possible.
2. Do you give any discount?
I'll surely try my best to help you get those by the best price and good service at the same time.
3. Warranty?
For each order, we provide one year limited warranty, within the warranty time we can provide repar parts or you can ship the products back, we will repair and ship back to you.
4. Do I need a technical person to assist installation and debugging the system to the screen?
Yes,normally it requests to send one or two technical persons to the installation site for assist,
as the perimeter/scoreboard will connect to different systems at the stadium,so, unless the buyer has professional engineer, we kindly suggest one or two engineers to be at site to help debugging the whole systems.
5. What’s your leading time?
The leading time usually will be 3-4 weeks, which depends on the total quantity and if there has special requirement or not.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
