Market prospects. LED display products are used in a wide range of applications, whether outdoor or indoor, commercial or government use, LEDs are used in a variety of industries with their excellent picture performance and high performance, and in the aerospace, agriculture, medical and other new The field is free to apply.
Industry technology continues to advance. Today, with the continuous development of science and technology, the LED display industry technology is also constantly developing and progressing, so that its cost is reduced, market demand is increasing, and the benign interaction of the LED industry chain shows that the application industry market will be further refined and upgraded.
Standardization into the direction of development. The Ministry of Railways, the Ministry of Communications, and the Ministry of Public Security have been able to establish relevant standards for LED display products. The downstream application areas have also established relevant management specifications, which will help promote the orderly and standardized development of the LED display equipment industry.
As a professional provider of LED display solutions, LightS actively pays attention to the industry product dynamics, and always adheres to the concept of users first, quality first and standards, to provide users with the most advanced scientific solutions.

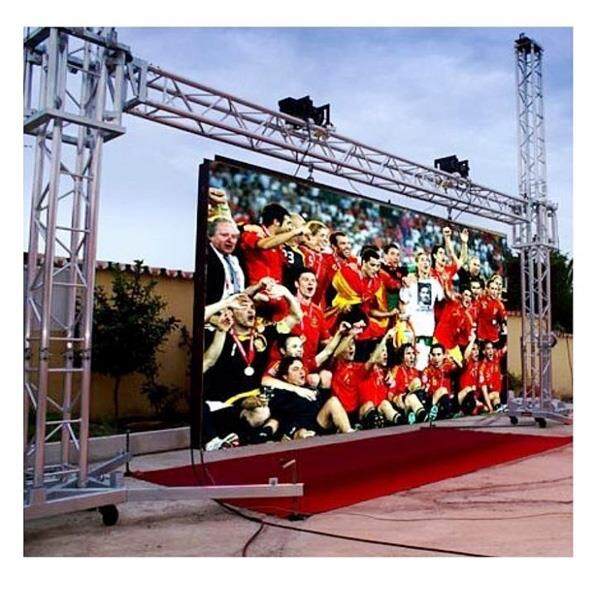

Item | Outdoor P8 DIP Rental LED Screen |
Model Number | P8 DIP246 |
Pixel Pitch | 8 mm |
Pixel Density(dots/m²) | 15625 |
Pixel Configuration | 1R1G1B |
LED Type | DIP246 |
Module size(mm) | 256mm*128mm |
Module Resolution(dots) | 32*16 dots |
Min.Viewing Distance(m) | ≥8 |
Brightness(cd/m²) | 6500-7000 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 500-850 W |
Scan Mode | 1/ 8 |
Protection Level | IP65 |
Iron Cabinet Size(mm) | 1280mm*1024mm |
Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Permeation rate | 40% |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Lifespan | ≥100000 hours |
Environment Temperature | Storage: -40°C ~ +85°C |
Blind Spot Rate | ＜0.0001(led display industry standard is less than 0.0003) |
Control Mode | Video frequency synchronization |
Product Features
1) Equipping with every specification of flight cases, which are convenient to store and transport, and also well protection for displays.
2) Super high resolution of 15625 pixels/㎡. It is so far the smallest pixel pitch by DIP type LED lamp.
3) High brightness over 7500 nits, compared to SMD3535 or SMD5050 type outdoor small pixel pitch(less than 10mm), it is much more bright and clear.
4) DIP type LED lamp, no need to worry water-proof problem, suitable for any weather conditions.
5) Close viewing distance, 8mm DIP type LED display can have a super close viewing distance near 6m, suitable for LED displays which need close viewing distance.
6) Can be used to make small size LED displays which are used to display videos.
Important Knowledge of LED Display
1. Full Color Integrated 3in1 SMD LED Screens
Higher definition and a super wide viewing angle in comparison to the ordinary led screens. Each panel is made by custom quantities of modules with an 8x8 or 4x4 configurations. Every 3-in-1 pixel in a reflect cavity is comprised by three LED chips: Red, Green, and Blue.
2. What is the difference between real pixel LED screens and virtual pixel LED screens?
With the virtual pixel technology, the LED display will appear a more clear vision. Theoretically the resolution will be 4 times of a real pixel technology LED display.The difference of a real a virtual pixel LED screen of LED display can be seen in the next pictures.
3. What is SMD LED?
SMD led also named SMT(surface mounted technology),through the SMT technology encapsulating diode,solodering this lamp on the PCB board surface,should not plug the lamp feet to the PCB board,so it names SMD led moule, using for indoor.
