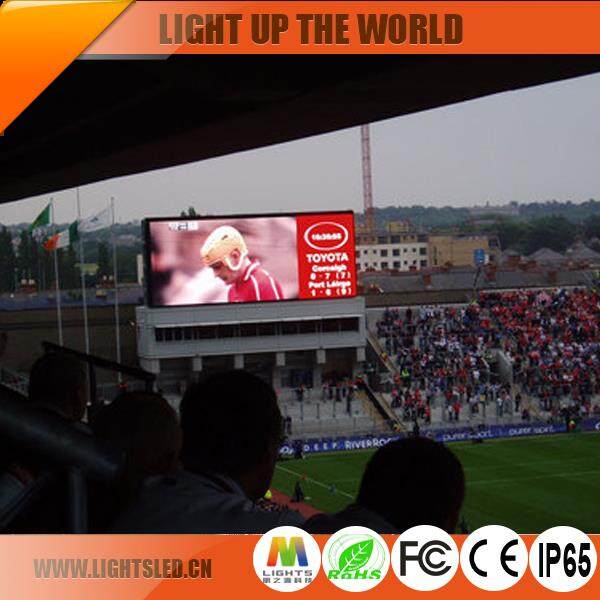

Item | Outdoor P10 SMD LED Stadium Display Screen |
Model Number | P10 |
Pixel Pitch | 10mm |
Pixel Density(dots/m²) | 10000 |
Pixel Configuration | 3IN1 |
LED Type | SMD3535 |
Module size(mm) | 320*160 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥10 |
Brightness(cd/m²) | ≥6000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 240-480 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Cabinet Size(mm) | Customized |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level, Color temperature is adjustable in terms of detailed requirements |
Working temperature | -40°C~80°C Life Span: 100,000hours |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Control Type | Asynchronization (3G/ WiFi /USB )/Synchronization |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Product Features
1) Full color LED Display: The best choice for outdoor movie display system.
2) Input signal : HDTV, CATV, NTSC, PAL, S-video, VGA, VCD, DVD.
3) 1024 shades per color.
4) Slim thin: The depth of the LED Display is only 450px
5) Low power consumption, long life span, stable.
6) Super input system: Windows digital interface .
7) Automatically on/off function .
8) Fit for various network, standard connection socket, easy installation.
Important Knowledge of LED Display
1. How can i place an order?
Please inform your requirements as clear as possible. So we can send you the offer ASAP.it is better to contact
us with Skype/email /phone within project begining, in case of any delays.
2. What's the control system?
For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use Onbon, or Xixun control system.
3. How does your factory do regarding quality control?
Quality is priority. Great importance to quality controlling from the very beginning to the very end.
4. Whats your payment term? How long it takes to delivery?
We accept T/T and L/C, For both T/T and L/C, At least 40% deposit in advance, and the rest 60% before delivery.
Our average Production time is 15 days, after receiving the deposit.
5. Can I use my own forwarder to transport the products for me?
Yes, if you have your own forwarder in Guangzhou, you can let your forwardership the products for you. And then
you will no need to pay the freight to us.
