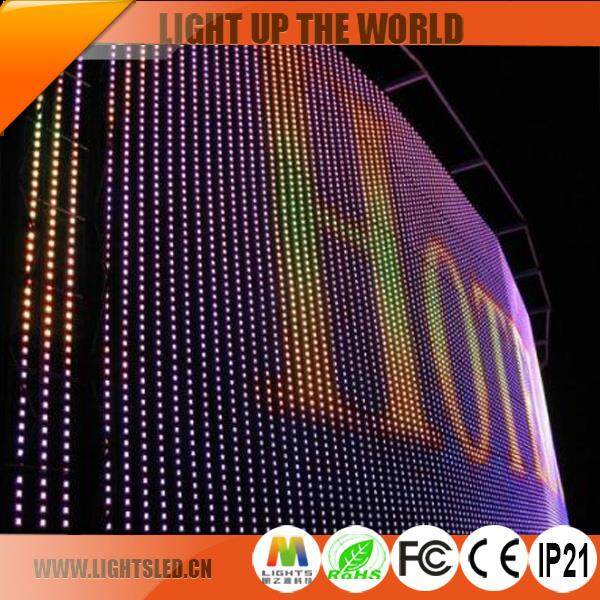

P25 Biggest LED Star Curtain Wall Display Screen or Panel | |
Model Number | P25 LED Curtain Video Display |
Pixels | 25mm |
LED Type | SMD3535 |
Pixel Density | 1600 |
Module size(mm) | 1200mm*250mm |
Module Resolution | 48*10 dots |
Refresh Frequency | ≥1200HZ |
Usage/Tube Chip | Outdoor/3 IN 1 |
Scan Mode | Static |
Average Power Consumption | 600(w/sq.m) |
Min.Viewing Distance(m) | ≥25m |
Brightness | ≥5000 nits |
Horizontal/Vertical viewing angle | <140° |
Working temperature | -20°C~80°C |
Protection Level | IP65 |
Iron Cabinet Size(mm) | 600*600mm |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Color | 64g color(on the condition of 4096 gray scale) |
Gray Scale | Recommended 14 BIT |
Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Life Span ; | 100,000hours |
MTBF | 10,000hours |
Environment Temperature | Storage: -40°C ~ +85°C |
Blind Spot Rate | ＜0.0001(led display industry standard is less than 0.0003) |
Control Mode | Video frequency synchronization |
Product Features
1) High quality SMD3535 lamps, high refresh rate and high brightness, perfect performance, could be played in the daytime.
2) It’s hollowed and is in favor of ventilation, lighting.
3) Having a good self-cooling system without air conditioner.
4) The integrated design of control box and installation structure.
Point by point correction available.
5) Different video frequency can be changed freely at the same time.
6) Extreme viewing angle by 1R1G1B,better color mixture and gorgeous image quality.
Important Knowledge of LED Display
1. How can i place an order?
Please inform your requirements as clear as possible. So we can send you the offer ASAP.it is better to contact us with Skype/email /phone within project begining, in case of any delays.
2. What kind of display we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display/stadium LED Display for you choose.
3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 7 days
4. How about the warranty ?
1-3 years warranty.
5. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, etc. You can choose the one which is the most convenient or cost effective for you.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
