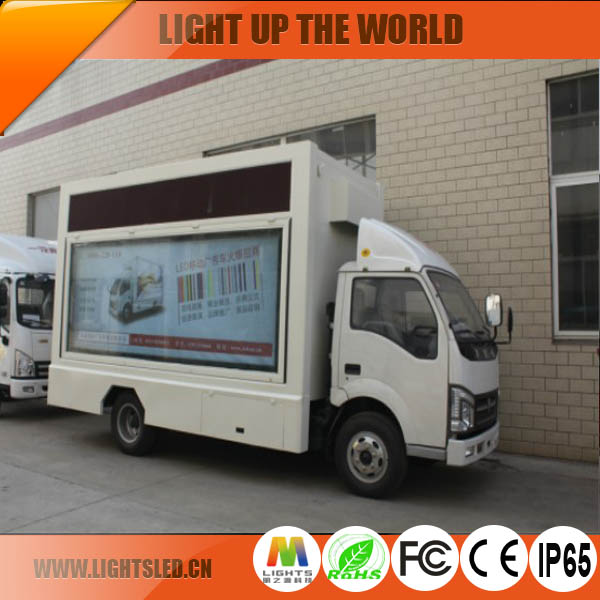

Item | Outdoor mobile P8 led display |
Model Number | P8 |
Pixel Pitch | 8mm |
Pixel Density(dots/m²) | 15625 |
Pixel Configuration | RGB |
LED Type | DIP246 |

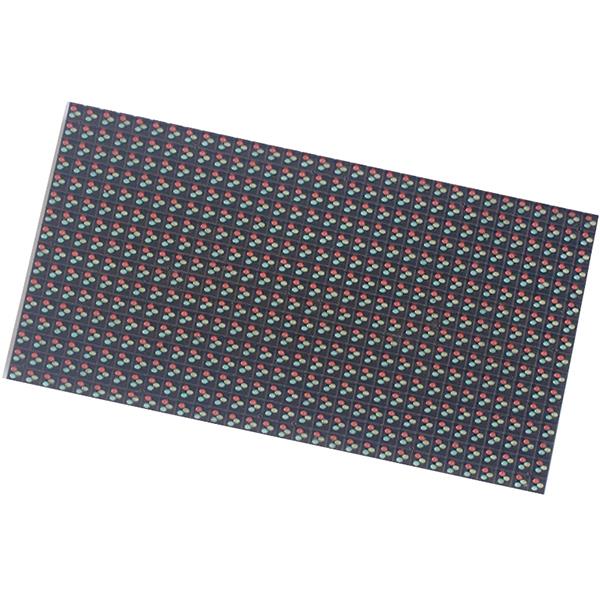

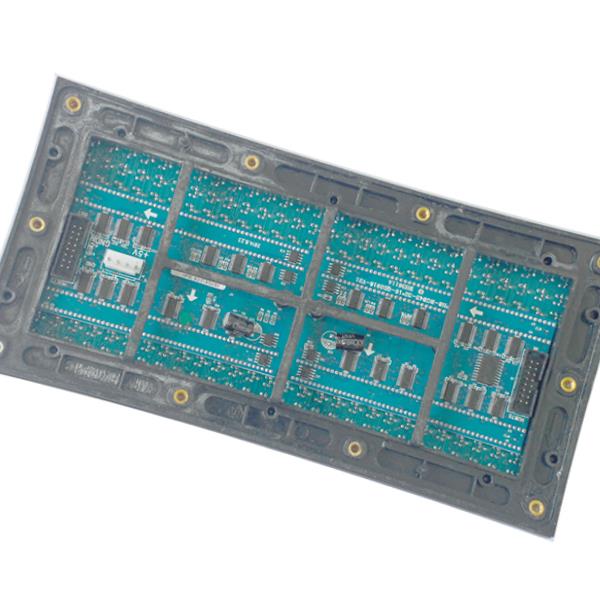

Module size(mm) | 256*128 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥8 |
Brightness(cd/m²) | ≥7000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 240-480 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Cabinet Size(mm) | Customized |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Working temperature | -40°C~80°C Life Span :100,000hours |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Control Type | Asynchronization (3G/ WiFi /USB )/Synchronization |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Product Features
1) High quality,relatively low cost and good after-sale service.
2) High contrast,excellent white color balance and light weight.
3) High brightness,small pitch,high resolution and perfect vivid image.
4) Stable work，minimum noise and advanced test equipment.
5) Long Lifespan.
6) Play a variety of information like video, word, flash, music, clock, graph.
7) Easy to install and dismantle.
Important Knowledge of LED Display
1. What’s your leading time?
The leading time usually will be 3-4 weeks, which depends on the total quantity and if there has special requirement
or not.
2. How long will the installation to get ready?
It depends on the whole project process, normally it will take one week to make everything get ready.
3. What’s the score system you recommend?
The score system now we recommend is for international standard, including: FIFA,NCAA,American football,IIHF,MLB
4. Is there any MOQ if I want to put one order?
Yes, you are right there has MOQ coz normally the mesh screen size will over 100 sqm, so, we kindly
request the MOQ will be 100sqm, if you have any difficult, pls let us know without hesitation as well.
5. Is there any special issue between the standard led display and led perimeter/scoreboard?
The difference including:The mast of perimeter/scoreboard is soft, the cabinet has extra support from backside, the
refresh rate is super high, and normally it will request fiber and fiber converter,also needs the scoreboard system.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
