Item | P8 Flexible HD Indoor High Brightness LED Display Screen Panel |
Model Number | P8 |
Pixel Pitch | 8mm |
Pixel Density(dots/m²) | 15625 |
Pixel Configuration | RGB |
LED Type | SMD3528 |
Module size(mm) | 256*128 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥8 |
Brightness(cd/m²) | ≥1200 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 250-450 |
Scan Mode | 1/16 |
Protection Level | IP31 |
Cabinet Size(mm) | Customized |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level: Color temperature is adjustable in terms of detailed requirements |
Working temperature ： | -20°C~80°C Life Span : 100,000hours |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Control Type | 3G/ WiFi /USB Memory : 4G |
Product Features

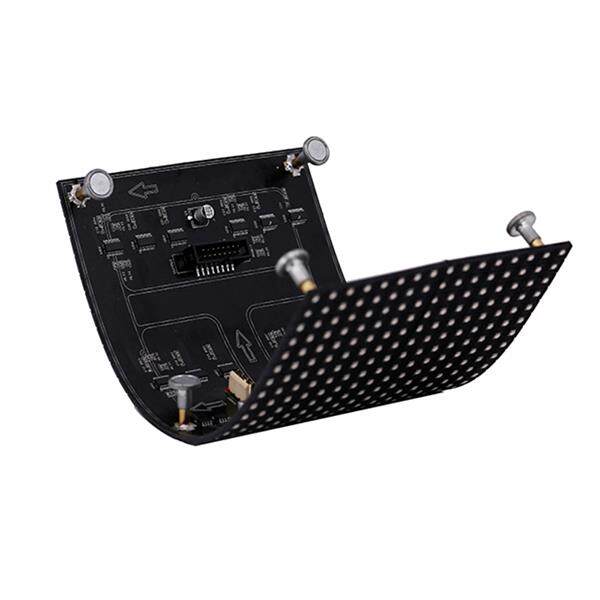

1) Flexible HD screen Soft PCB Board
2) Flexible LED display Fixed with Magnetic Foot
3) Easy to assemble to different shape, inner arc, outer arc and right-angled LED sign
4) Fast connect data and power cable, front maintainable.
5) Working Voltage: 5V
6) Module Weight : 0.15KG
7) Flexible display price: Contact me now.
Important Knowledge of LED Display
1. The total size of the LED screen?
The bigger or larger the LED screen the higher the cost. The prices are based on USD/sqm, which means that if the total size is 24sqm, the price will be 24 multiplied by the cost per sqm.
2. What can I show on my LED Screen?
We can help you show anything you want on your screen. Plug in a laptop and show presentations, videos, and slideshows. We can take live video feeds and signals from your computers, vision mixers, or any output source including CV, VGA, HDMI, DVI, SDI, HD-SDI and more.
3. Does the panel has a fire certificate?
Yes. All of our panels meet standards for fire and power ratings.
4.Do you have any MOQ limit for led display order?
Low MOQ, 1pc for sample checking is available
5. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
