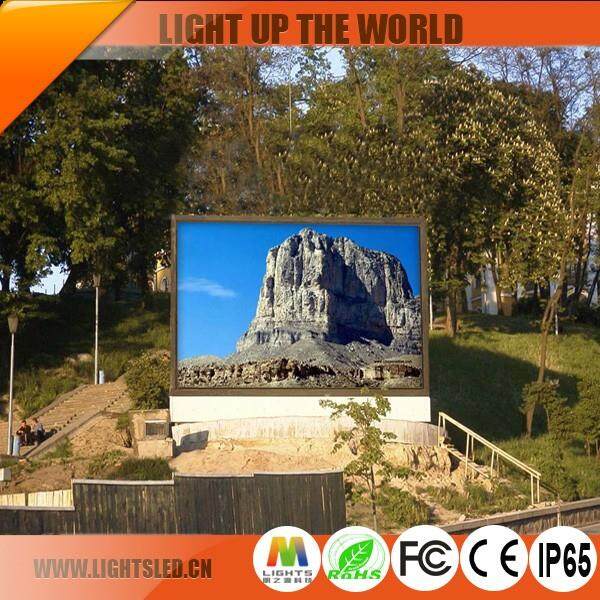

Item | Outdoor Full Color LED Display |
Model Number | P5 |
Pixel Pitch | 5mm |
Pixel Density(dots/m²) | 40000 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD2727 |
Module size(mm) | 160*160 |
Module Resolution(dots) | 32*32 |
Min.Viewing Distance(m) | ≥5 |
Brightness(cd/m²) | ≥7000 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 550-850 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Cabinet Size(mm) | 640*640 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | 14BIT Recommended |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Product Features
1) Outdoor P5 SMD LED display possesses a high brightness, wide visible angle, also a high refresh frequency and high gray scale.
2) Professional LED display control system with advanced technology and intelligent control.
3) Distinguished cabinet design with strong compatibility. Any single dead lamp can be repaired respectively, which reduce the cost of maintenance.
Important Knowledge of LED Display
1. What is a pixel?
A pixel is a cluster of LEDs (one red, one blue and one green on a Prismview display) which, as a component of the overall image, represents one point of illumination. The combination of these individual levels of the three colors forms the display image.
2. How bright can LED displays get?
LED displays vary in ‘absolute maximum brightness’ by pitch. The quality of diode used in a display can have a dramatic impact on brightness as well. Prismview uses top quality diodes from major world-renown companies to ensure displays that are more than bright enough to compete with ambient sunlight.
3. What kinds of files can be used on Prismview displays?
BMP, uncompressed AVI, WMV and JPG files all work well. JPG are the most commonly used.
4. Does Prismview offer proof-of-performance?
Yes. With proof-of-performance, display operators have the ability to generate reports summarizing play counts and date ranges. You can customize reports for each of your advertisers, providing POP reports within a variety of parameters.
5. What is a matrix?
The matrix of a particular exterior-use electronic display refers to the number of vertical pixels by the number of horizontal pixels in the display. For example, if a display has a matrix of “200 by 704”, this means it has 200 pixels from top to bottom and 704 pixels from left to right. In video applications, much like your television set, these numbers might be reversed. For instance, a high-definition TV today is commonly referred to as “1920 by 1080”, where 1920 represents pixels from left to right, and 1080 represents pixels from top to bottom.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
Shenzhen LightS Technology Co.,Ltd
Add: 5/F Building C, Fuzhen Industrial Park Changfeng Road, Changzhen Village, Guangming Street Shenzhen, China
Contactus: Weiqiang Jin
Tel: +86-0755-81707899
Fax: +86-0755-81707880
Mob/WhatsApp/Wechat: +86-13316879987
E-mail: ledsales168@lightsled.cn
If you're looking for the p5 outdoor advertising led display china video display screen panel board signs price made in China, please rest assured to wholesale the screens with our professional manufacturers and suppliers in China. They are all made in our professional factory and are sold at low price.
