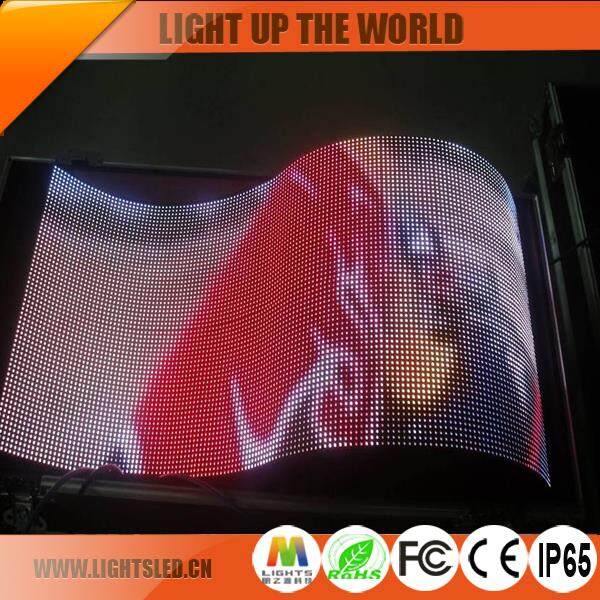

Item | P6 LED Flexible Digital Display Bendable Soft Screen |
Model Number | P6 |
Pixel Pitch | 6mm |
Pixel Density(dots/m²) | 27777 |
Pixel Configuration | RGB |
LED Type | SMD3528 |
Module size(mm) | 192*192 |
Module Resolution(dots) | 32*32 |
Min.Viewing Distance(m) | ≥6 |
Brightness(cd/m²) | ≥1000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 240-480 |
Scan Mode | 1/16 |
Protection Level | IP21 |
Cabinet Size(mm) | Customized |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level: Color temperature is adjustable in terms of detailed requirements |
Working temperature | -20°C~80°C Life Span :100,000hours |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Control Type | 3G/ WiFi /USB Memory: 4G |
Product Features

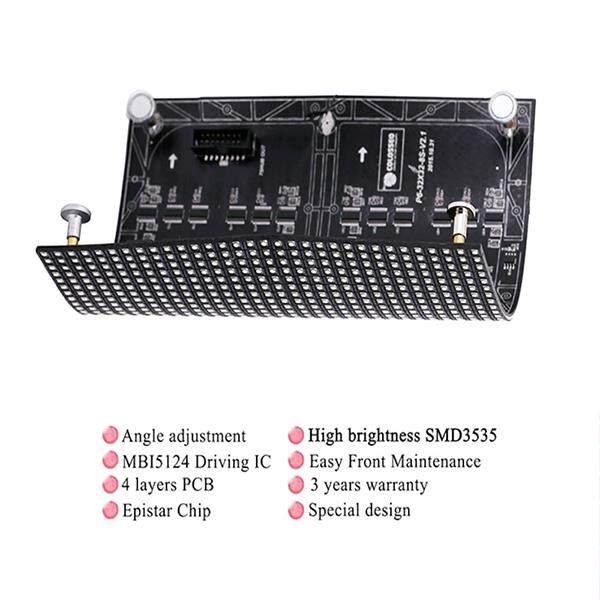

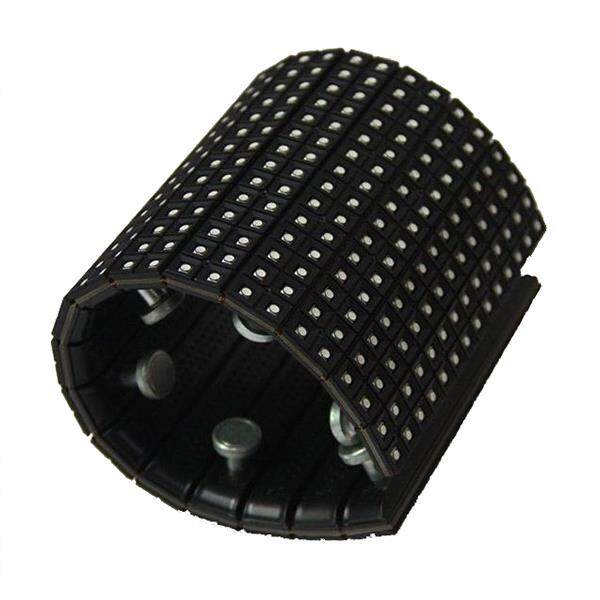

1) Flexible digital screen soft led module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving, it won't break LEDs as well design of mask covers.
2) LED flexible display Module with small-unit and flexible design,makes possibility of more complicated shapes for the video show.
3) Assembling screen with soft led modules directly,saving time and effort,easy operation.
4) Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.
5) No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
6) Strict quality control and long-term application experience verified the stability and excellent performance by using Nationstar LED, and MBI5124 Driving IC for high refresh rate and performance.
7) Widely applied in shaped stage background/exhibition/shopping mall etc.
Important Knowledge of LED Display
1. Quality gurantee
Life span of LED display screens is more than 100,000 hours
All our LED displays have CE,FCC,RoHS certificates.
2. Prompt &Professional service
Any inquires will be replied within 24 hours in working days and you’ll get helpful suggestions from us.
3. Are you a factory or trading company?
We are a OEM/ODM factory.
4. What payment methods your company accept?
We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
5. How long is the warranty time for your products?
Our officially promised warranty time is one whole year after delivery at best.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
