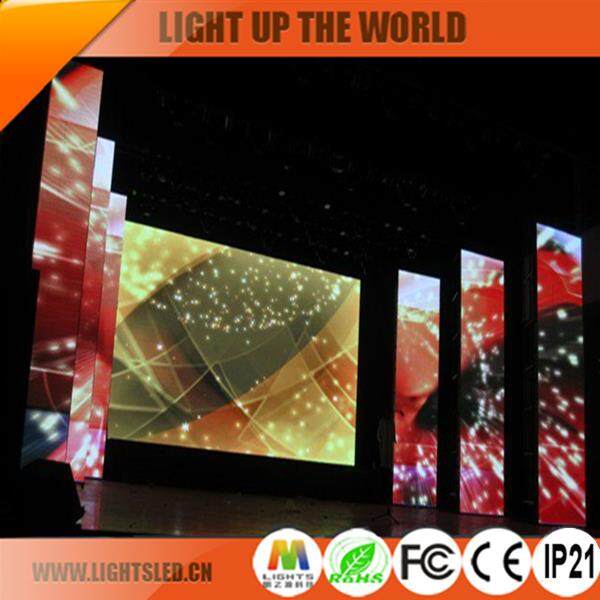

Item | Indoor P6 video screen rental |
Model Number | P6 |
Pixel Pitch | 6mm |
Pixel Density(dots/m²) | 27777 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD3528 |
Module size(mm) | 192mm*192mm |
Module Resolution(dots) | 32*32 dots |
Min.Viewing Distance(m) | ≥6 |
Brightness(cd/m²) | 1200-1500 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 240-480 W |
Scan Mode | 1/ 16 |
Protection Level | IP21 |
Iron Cabinet Size(mm) | 768mm*576mm |
Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Lifespan | ≥100000 hours |
Environment Temperature | Storage: -40°C~+85°C |
Blind Spot Rate | ＜0.0001(led display industry standard is less than 0.0003) |
Control Mode | Video frequency synchronization |
Product Features
1) Adopting modular design, assembled cabinet can install and dis-assembly quickly and easily. It is easy to maintenance.
2) New structure design, can satisfy hoisting, over-stow, indoor and outdoor used requirements. Cabinet simplification, and various pixel pitch of indoor and outdoor LED module such as P4,P5.33,P6.4,P8,P10.66,P12.8,P16 are compatible.
3) With excellent heat dissipation design and performance,It has low noise and doesn't need external fan or air-condition. Besides, It can reduce the labor cost of installation and operating costs.
Important Knowledge of LED Display
1. Are your displays outdoor rated?
Yes. We do have solutions that can be utilized for permanent outdoor installation. Your sales representative can help you determine which products fit you best.
2. What size screen do I need?
This is a very hard question to answer because each client’s requirements will be different. How far away will the viewers be? What type of information will be on the screen? Is the screen indoor or outdoor? Is the screen or scoreboard in direct sunlight? These are the questions that need to be taken into consideration before the correct screen can be chosen. Please call LED Screens Australia with help in choosing the correct LED screen or Scoreboard for your needs.
3. What can I show on my LED Screen?
The answer is pretty much anything. From Jpegs and still images to a Full HD video. From a single line of text to a cricket scoreboard. TV, Foxtel, PC display, Custom Graphics. As long as you have the correct size and resolution on your screen, anything is possible.
4. Is it OK to print my logo on led cabinet backside?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
5. Do you offer guarantee for the products?
Yes, we offer 1-3 years warranty to our products.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
