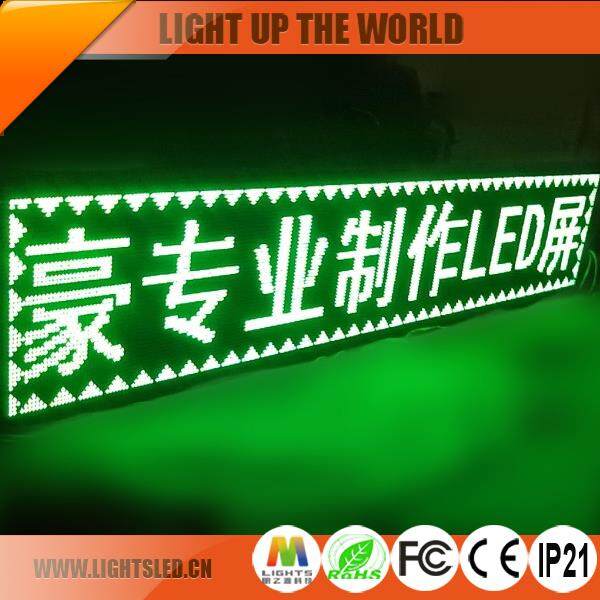

Item | Outdoor P10 green LED display |
Model Number | P10 |
Pixel Pitch | 10mm |
Pixel Density(dots/m²) | 10000 |
Pixel Configuration | 1G |
LED Type | DIP346 |
Module size(mm) | 320*160 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥10 |
Brightness(cd/m²) | ≥2000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 240-480 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Cabinet Size(mm) | Customized |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Working temperature | -40°C~80°C |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Control Type | Asynchronization (3G/ WiFi /USB )/Synchronization |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Product Features
1) Perminent effects, clear and stable pictures without distortion and disturbance.
2) High quality, adopting first-class chips and wafers imported from abroad.
3) Flexible form, continuity, overlying, combination of dynamic and static playing, various effects include rolling moving, typewriting, gradual changing and so on.
4) Off-line running function, which adopts the monolithic design technology and computer string communication way, which can operate in off-line state setting the dates and revising a data via the telephone line.
5) Many colors are for selection, like red, amber, green, blue, white.
Important Knowledge of LED Display
1. Whats your payment term? How long it takes to delivery?
We accept T/T and L/C, bank transfer,paypal etc. At least 40% deposit in advance, and the rest 60% before delivery.
2. Can it play HD video?
Yes, it can realize HD video function with controlling system
3. What details need to be provided to get a quotation?
The buyer needs to provide pixel pitch,usage,dimension of screen and as more details as possible.
4. Can the LED table lamp be with eye-protection?
Yes.
5. Is there any cheap shipping cost to import to our country?
For small order,express will be the best.And for bulk order,sea ship way is best but take much time.For urgent orders,we suggest via air to airport.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
