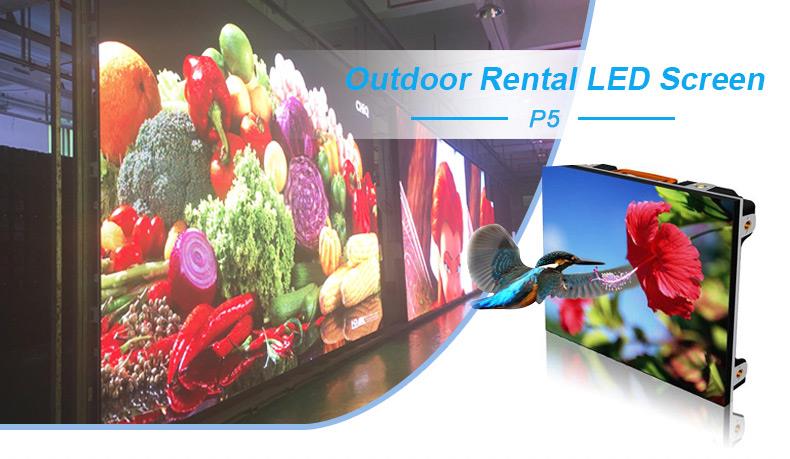

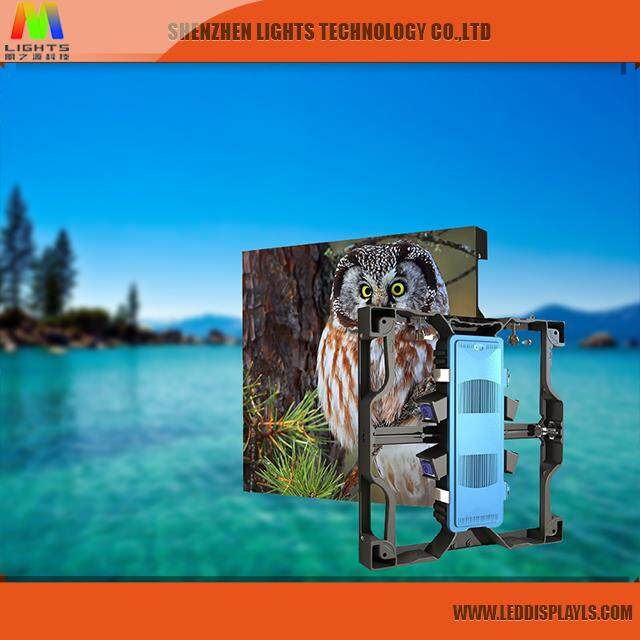

Item | Outdoor P5 Rental LED Screen |
Model Number | P5 SMD2727 |
Pixel Pitch | 5 mm |
Pixel Density(dots/m²) | 40000 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD2727 |

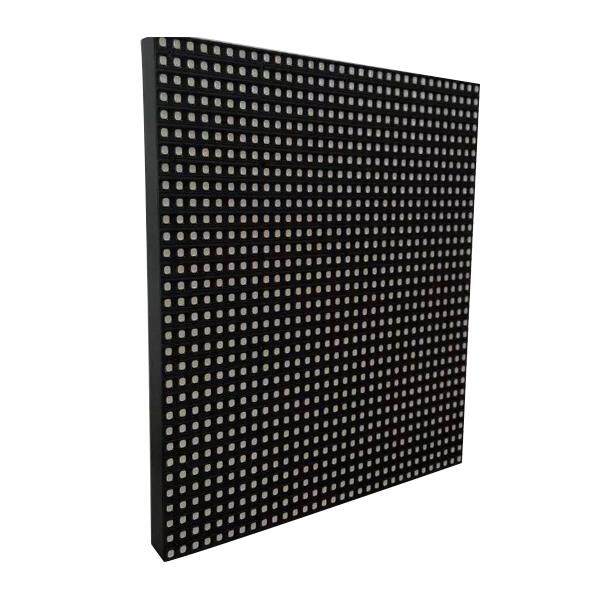

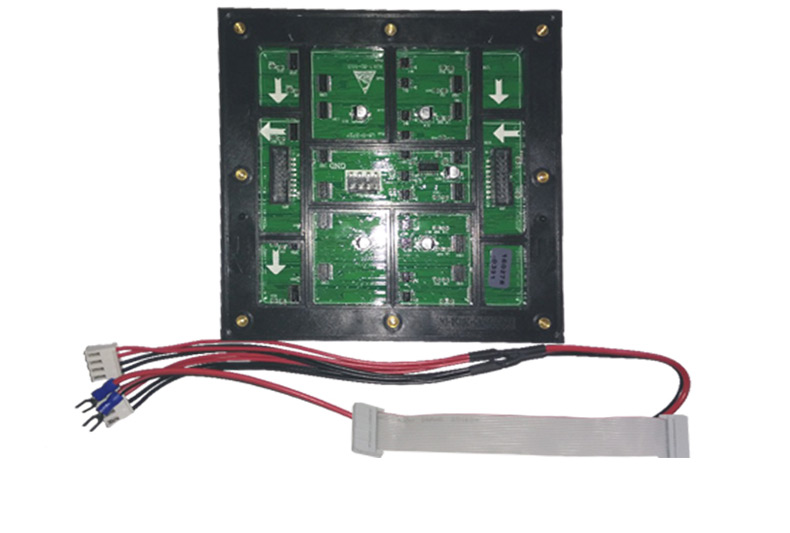

Module size(mm) | 160mm*160mm |
Module Resolution(dots) | 32*32 dots |
Min.Viewing Distance(m) | ≥5 |
Brightness(cd/m²) | 5500-5800 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 550-850 W |
Scan Mode | 1/ 8 |
Protection Level | IP65 |

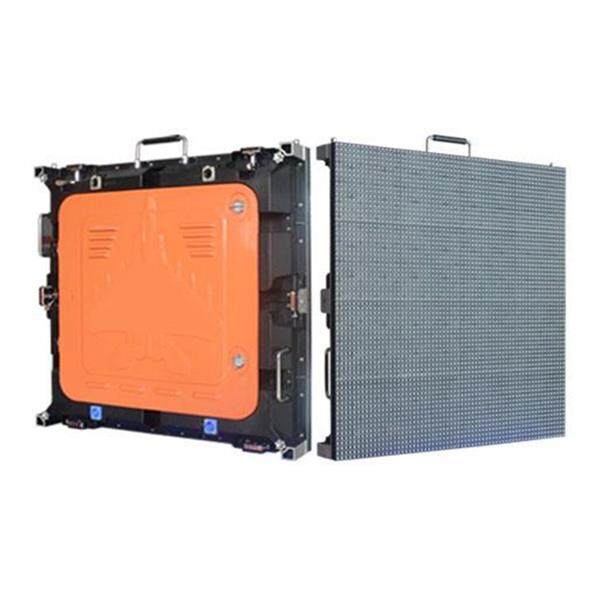

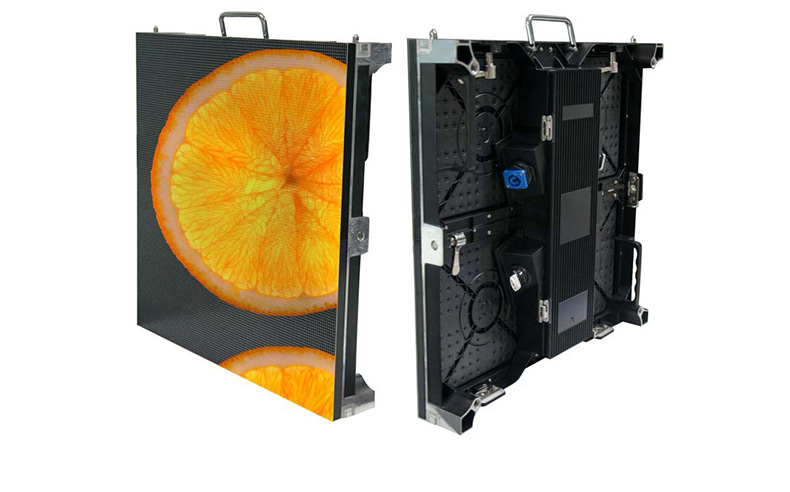

Iron Cabinet Size(mm) | 640mm*640mm |
Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Permeation rate | 40% |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | Recommended 14 BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Lifespan | ≥100，000 hours |
Environment Temperature | Storage: -40°C~+85°C |
Blind Spot Rate | ＜0.0001(led display industry standard is less than 0.0003) |
Control Mode | Video frequency synchronization |
Product Features
1) Able to rotate/revise ads at no additional cost. A JPEG image is all that is needed.
2) Flexible rates and schedules for any business.
3) The display schedule can be adjusted for the time of day, an advertising theme, or even different products.
4) The waterproof and dustproof protection level could up to IP65.
Important Knowledge of LED Display
1. What is LED display of the IP protection grade?
IP protection grade is composed of two digital, the first digital representation from the dust of lamps and lanterns, the level of the external things out, the second digit said moisture proof.
2. Why use a DVI display interface standard ?
(1) DVI display card interface is in line with the computer display interface of the international standards;
(2) without opening the chassis, to facilitate the installation;
(3) memory, dynamic screen display capabilities;
(4) hardware and software compatibility;
(5) to support all operating systems and application software, display flexibility and convenience;
(6) mass production, low cost, easy to maintain.
3. Why outdoor screen production cycle is long?
(1) procurement of raw materials: the LED lamp procurement cycle is longer, especially imported die, order cycle takes 4-6 weeks;
(2) The production process is complex: subject to the PCB design, production casing, plastic irrigation, adjusting white balance;
(3) strict structural requirements: the general cabinet design, the need to consider the wind, rain, lightning.
4. How bright can LED displays get?
LED displays vary in ‘absolute maximum brightness’ by pitch. The quality of diode used in a display can have a dramatic impact on brightness as well. Prismview uses top quality diodes from major world-renown companies to ensure displays that are more than bright enough to compete with ambient sunlight.
5. What kinds of files can be used on Prismview displays?
BMP, uncompressed AVI, WMV and JPG files all work well. JPG are the most commonly used.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
