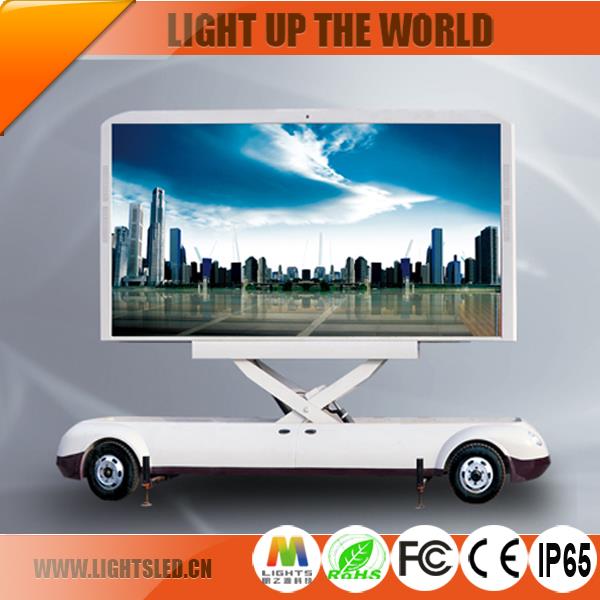

Item | P6 High Quality Mobile LED Signage Screen Rental Led Display Signage Mobile LED Signage |
Model Number | P6 |
Pixel Pitch | 6mm |
Pixel Density(dots/m²) | 27777 |
Pixel Configuration | RGB |
LED Type | SMD2727 |
Module size(mm) | 192*192 |
Module Resolution(dots) | 32*32 |
Min.Viewing Distance(m) | ≥10 |
Brightness(cd/m²) | ≥7000 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 550-850 |
Scan Mode | 1/16 |
Protection Level | IP65 |
Cabinet Size(mm) | 768*576 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level:Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Product Features
1) High Contrast: 4000:1,which is a very high level to ensure a vivid image our LED Display screen system.
2) Long-term Brightness: 7000 nit brightness capacity through product lifetime of the LED display screen.
3) Easy installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system.
4) High refresh rate and high gray make the picture more realistic,which meets the demand of high visual quality of commercial usage.
5) With GPS Function,locate the mobile screen position anywhere and anytime.
Important Knowledge of LED Display
1. Will the color quality of a digital billboard fade over time.
With lower quality LED displays, colors fade over time due to the breakdown of the phosphor coating. OAI's displays use superior quality phosphor coating to ensure minimal color loss over time.
2. What video inputs do I get with a full color led display sign?
You will be able to connect any device to the full color led display sign supporting DVI, Composite Video, VGA, and S-Video.
3. What video sources can I use with the full color led display sign?
The video sources compatible with the full color led display sign are DVD's, VCD's, VCR's, TV's, Camera with PAL/NTSC standard.
4. Is it possible to transmit live video through the large led display sign?
Yes it is posible to transmit live video and also VGA through the large LED display sign.
5. Do our LED display sign price quotes include shipping costs?
Our LED display sign price quotes do not include shipping costs. This is because those prices change by day. We do provide you this service and the price will be calculated by our logistics department the moment you have decided to order with us. Of course we provide you with the best shipping prices that are available at that moment to ship the full color led display signs to its destiny.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
