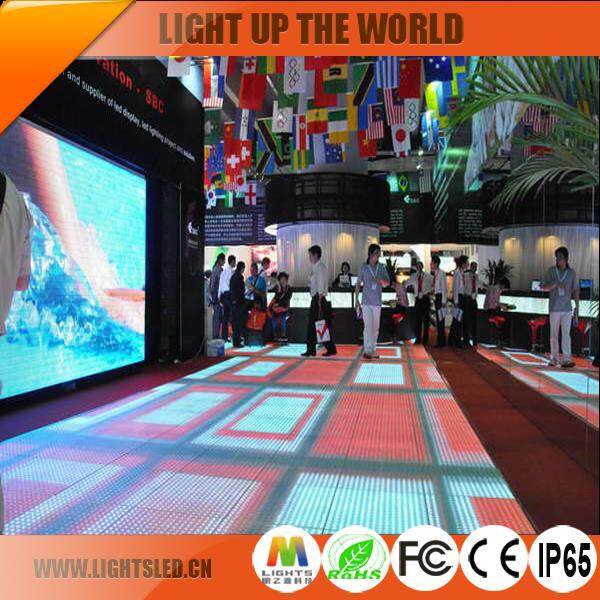

Item | Outdoor SMD Full Color LED Floor Tile Display |
Model Number | P5 |
Pixel Pitch | 5mm |
Pixel Density(dots/m²) | 40000 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD2727 |
Module size(mm) | 160*160 |
Module Resolution(dots) | 32*32 |
Min.Viewing Distance(m) | ≥5 |
Brightness(cd/m²) | 5500-5800 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 500-850 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Cabinet Size(mm) | 640*640 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Product Features
1) Installation area: They are ideal for applications in advertising, promotions, shopping malls, traffic control, concerts, sporting events.
2) Advertising forms: Texts, images, video, etc.
3) Brightness: 5500-5800 cd/㎡.
4) Large viewing angle: Horizontal 120 degree, vertical 120 degree.
5) Controlled by USB disk or internet access, and it can display time.
6) High brightness, low power consumption.
Important Knowledge of LED Display
1. What is the difference between real pixel LED screens and virtual pixel LED screens?
With the virtual pixel technology, the LED display will appear a more clear vision. Theoretically the resolution will be 4 times of a real pixel technology LED display.The difference of a real a virtual pixel LED screen of LED display can be seen in the next pictures.
2. How do virtual LED screens work?
Below you can clearly see how the virtual pixels are made, we surely recommend you a virtual display, even so our new technology of Dot Matrix it’s still better than virtual pixels, because the three colors RGB are in the same dot or pixel, just like the SMD technology and also the Dot Matrix have a horizontal viewing angle of over 160 degrees. The virtual pixel LED screens have a horizontal viewing angle of upto 130 degrees.
3. Playing Videos on LED Screens?
To play videos on a LED screen a video file will be loaded into the LED screen software if the format is in AVI or MPEG. Another option is that the video(s) or publicity spot(s) is placed on a DVD and can be loaded with the LED screen software directly from the DVD.
4. Advanced Live Video Processor for LED Screens
With our advanced live video processor, the image can be adjusted horizontally and vertically to make the image or video fit the screen.
5. The total size of the LED screen?
The bigger or larger the LED screen the higher the cost. The prices are based on USD/sqm, which means that if the total size is 24sqm, the price will be 24 multiplied by the cost per sqm.
