Item | Outdoor Full Color LED Display |
Model Number | P8 |
Pixel Pitch | 8mm |
Pixel Density(dots/m²) | 15625 |
Pixel Configuration | RGB |
LED Type | DIP246 |
Module size(mm) | 256*128 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥8 |
Brightness(cd/m²) | ≥6500 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 500-850 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Cabinet Size(mm) | 1280*1024 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | 14BIT Recommended |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters, max transmission distance is 130 meters. |
Product Features

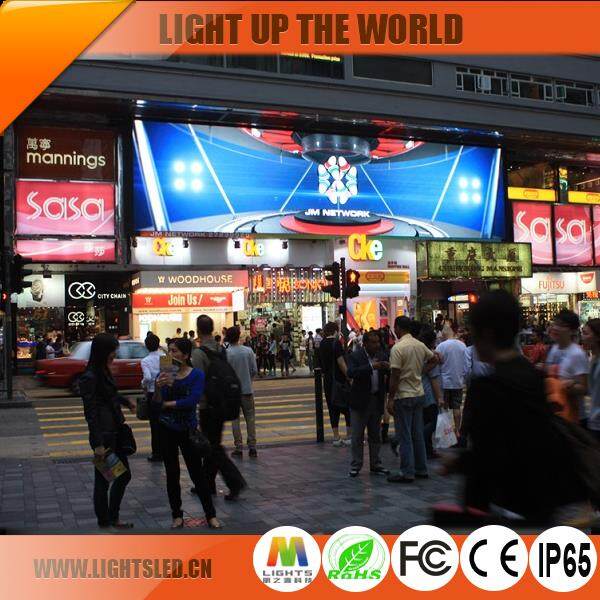

1) P8 outdoor super bright solid LED display is the latest and high resolution product. It is specially designed for outdoor live events, entertainment, and trade show applications etc.
2) Our outdoor P8 DIP LED display is of super bright, waterproof and high refresh rate. Easy assembling and has best viewing distance.
3) Low energy consumption, long lifespan, stable performance and the customized appearance with a strong visual impact. At the same time, it is very easy for the installation, maintenance and operation.
Important Knowledge of LED Display
1. What about your pre-sale service and post-sale service?
For pre-sale service: We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
2. Whats your payment term? How long it takes to delivery?
We accept T/T and L/C, For both T/T and L/C, At least 40% deposit in advance, and the rest 60% before delivery.
Our average Production time is 15 days, after receiving the deposit.
3. What's the control system?
For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use Onbon, or Xixun control system.
4. How can i place an order?
Please inform your requirements as clear as possible. So we can send you the offer ASAP.it is better to contact us with Skype/email /phone within project begining, in case of any delays.
5. What kind of display we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display/stadium LED Display for you choose.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
