Item | Outdoor mobile P5 LED display |
Model Number | P5 |
Pixel Pitch | 5mm |
Pixel Density(dots/m²) | 40000 |
Pixel Configuration | RGB |
LED Type | SMD2727 |
Module size(mm) | 320*160 |
Module Resolution(dots) | 64*32 |
Min.Viewing Distance(m) | ≥5 |
Brightness(cd/m²) | ≥6000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 240-480 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Cabinet Size(mm) | Customized |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Working temperature | -40°C~80°C Life Span: 100,000hours |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Control Type | Asynchronization (3G/ WiFi /USB )/Synchronization |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Product Features

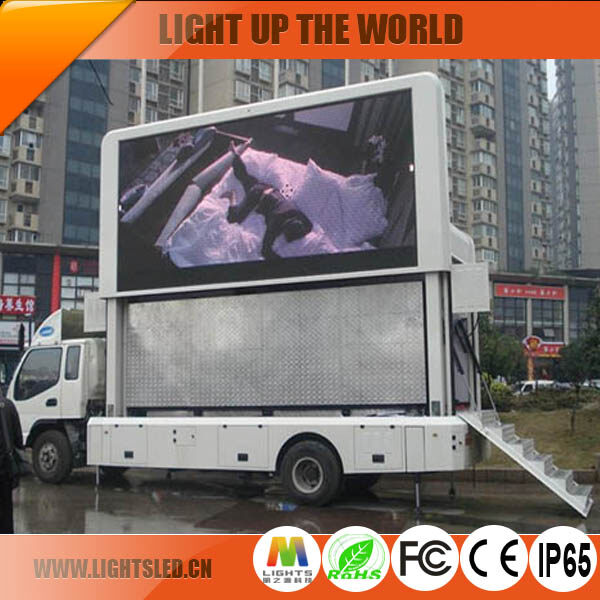

1) Wide application field &short ROI time: You can let your LED display travel around the city. Many audiences will see it and get totally impressed. It makes your advertising really efficient.
2) Low weight: Normally we choose aluminum cabinet so i is much lighter. It won't bring too much load to your truck.
3) First class LED chip: Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED screen system.
4) High brightness so even in direct, full-on sunlight, we can still view clear vivid image on the LED display: 7000 nits brightness for outdoor full color, brightness can be lowed when used indoors so it won't bring visual pollution.
Important Knowledge of LED Display
1. What is LED?
A LED screen is a video display which uses light-emitting diodes. An LED panel is a small display, or a component of a larger display or screen. They are typically used outdoors in store signs and billboards.
2. How is the after sales servicen?
We have a professional team which is in all around the world , also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems
3. Are you a factory or trading company?
We are a factory.
4. How to get the price list?
Price list Pls Email /call /faxto us with items name .
5. What's the control system?
For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use Onbon, or Xixun control system.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
