Item | P3 Indoor Full Color LED Display |
Model Number | P3 |
Pixel Pitch | 3mm |
Pixel Density(dots/m²) | 111111 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD2121 |

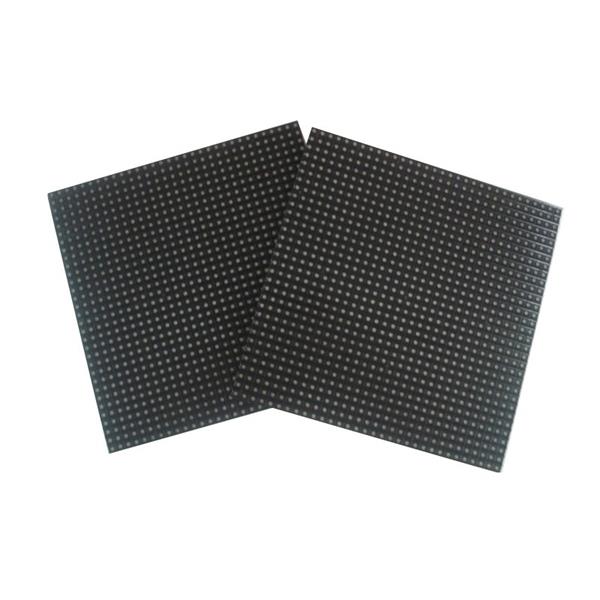

Module size(mm) | 192*192 |
Module Resolution(dots) | 64*64 |
Min.Viewing Distance(m) | ≥3 |
Brightness(cd/m²) | ≥1200 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 400-750 |
Scan Mode | 1/16 |
Protection Level | IP21 |

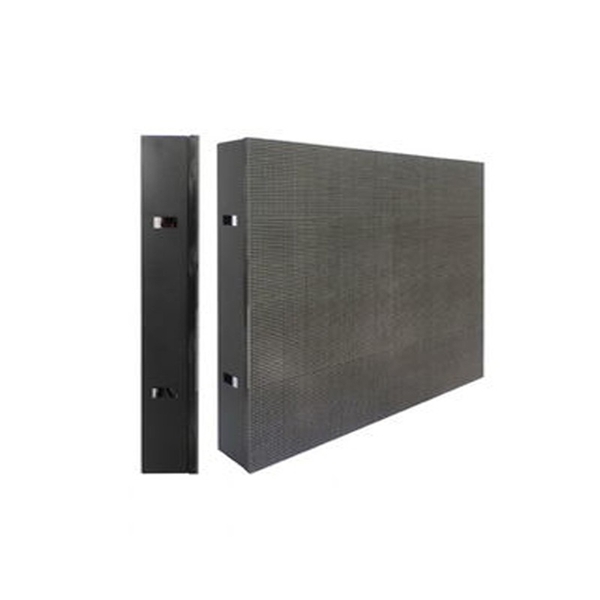

Cabinet Size(mm) | 576*576 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is 300-600HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Product Features
1) High brightness and stable performance lead long lifespan and low power consumption.
2) Accurate color uniformity and smoother,flicker-free video displaying.
3) Wide viewing angle, high contrast, high brightness (adjustable), high intensity (14bit gradation processing), high refresh, softer image, display lifelike images to meet the high-speed motion picture display.
Important Knowledge of LED Display
1. Do you have any MOQ limit for led display order?
Low MOQ, 1pc for sample checking is available
2. Do you offer guarantee for the products?
Yes, we offer 1-3 years warranty to our products.
3. Quality gurantee?
Life span of LED display screens is more than 100,000 hours
All our LED displays have CE,FCC,RoHS certificates.
4. Are you a factory or trading company?
We are a OEM/ODM factory.
5. What is Viewing Angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
