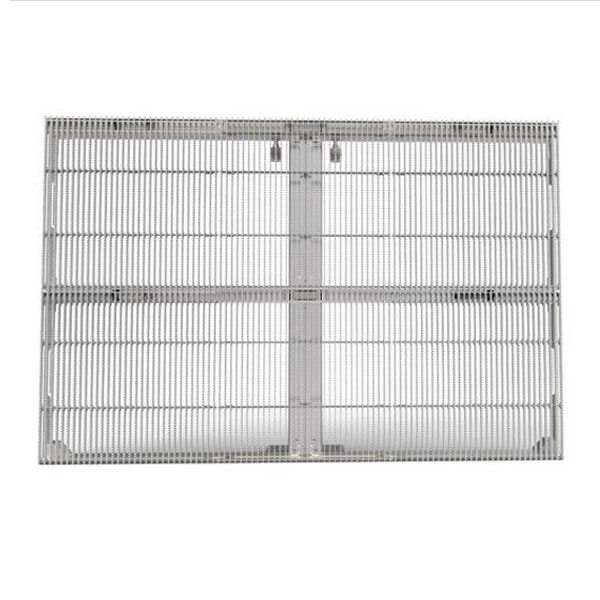

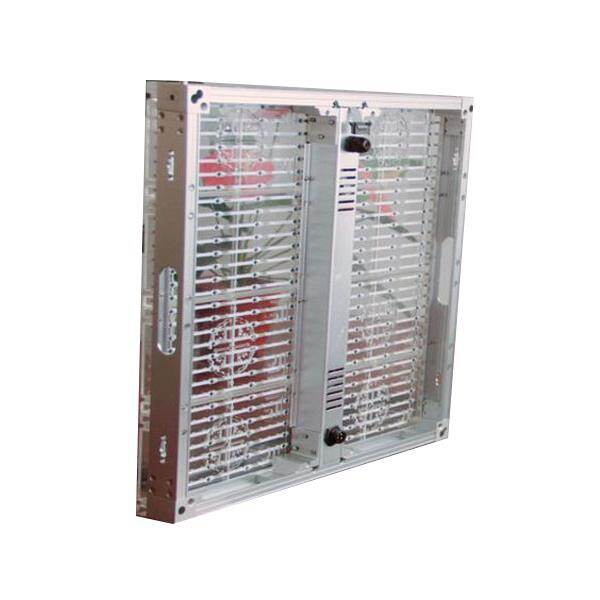

Item | P8 Glass Display Panels Signs with High Quality |
Model Number | P8 |
Pixel Pitch | 8*8mm |
Pixel Density(dots/m²) | 16667 |
Pixel Configuration | 1R1G1B |
LED Diode Type | SMD3528 |
Module size(mm) | 160*480 |
Module Resolution(dots) | 24*64 |
Cabinet size(mm) | 800*960 |
Cabinet resolution | 100x128dots |
Brightness(cd/m²) | ≥6500 |
Average Power Consumption(w/m²) | 240-800 |
Scan Mode | 1/2 |
Protection Level | IP20 |
Refresh Rate | 1000~1500 |
Transparent rate | >65% |
IC | MBI5124 |
Weight | 14kg/sqm |
Working temperature | -10℃~+40℃ |
Horizontal/Vertical viewing angle | <120° |
Product Features
1) Our transparent led display got those special: Light,Thin,Transparent,Energy-saving.
2) High quality with UL/CE/ROHS.
3) LightS Transparent got customized large size,seamless splicing.4.
4) P8 glass led with high contrast,more gorgeous showing.
5) High Transparent,able to reach 80%.
Important Knowledge of LED Display
1. What’s the score system you recommend?
The score system now we recommend is for international standard, including: FIFA,NCAA,American football,IIHF,MLB.
2. Is there any MOQ if I want to put one order?
Yes, you are right there has MOQ coz normally the mesh screen size will over 100 sqm, so, we kindly
request the MOQ will be 100sqm, if you have any difficult, pls let us know without hesitation as well.
3. What’s your leading time?
The leading time usually will be 3-4 weeks, which depends on the total quantity and if there has special requirement or not.
4. Is there any special issue between the standard led display and led perimeter/scoreboard?
The difference including:The mast of perimeter/scoreboard is soft, the cabinet has extra support from backside, the refresh rate is super high, and normally it will request fiber and fiber converter,also needs the scoreboard system.
5. How long will the installation to get ready?
It depends on the whole project process, normally it will take one week to make everything get ready.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
