Item | Single Color LED Screen |
Model Number | P10 |
Pixel Pitch | 10mm |
Pixel Density(dots/m²) | 10000 |
Pixel Configuration | 1B |
LED Type | DIP |
Module size(mm) | 320*160 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥10 |
Brightness(cd/m²) | ≥2500 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 500-850 |
Scan Mode | 1/4 |
Protection Level | IP65 |
Cabinet Size(mm) | 960*960 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Products Features

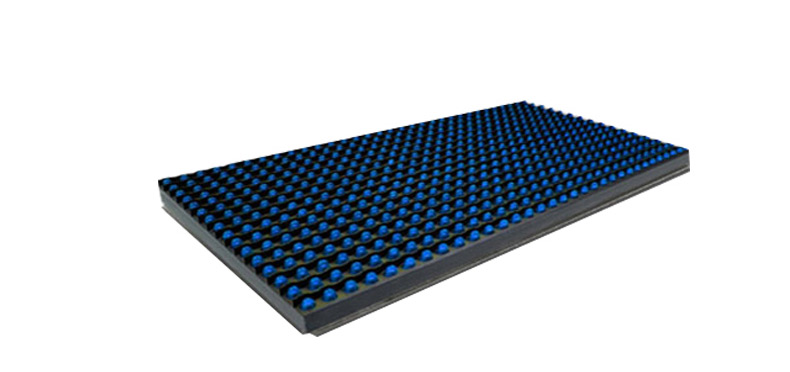

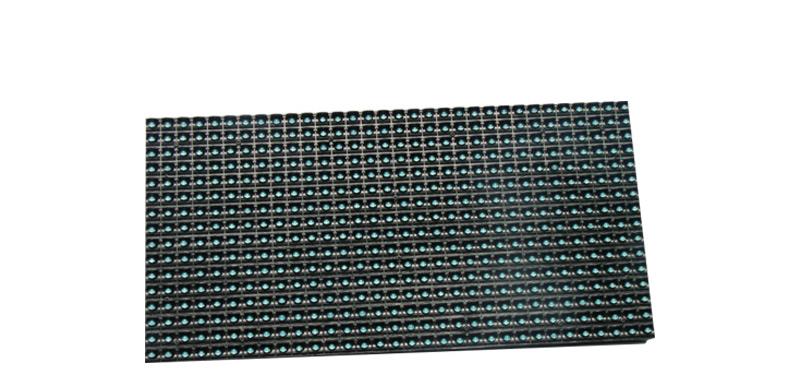

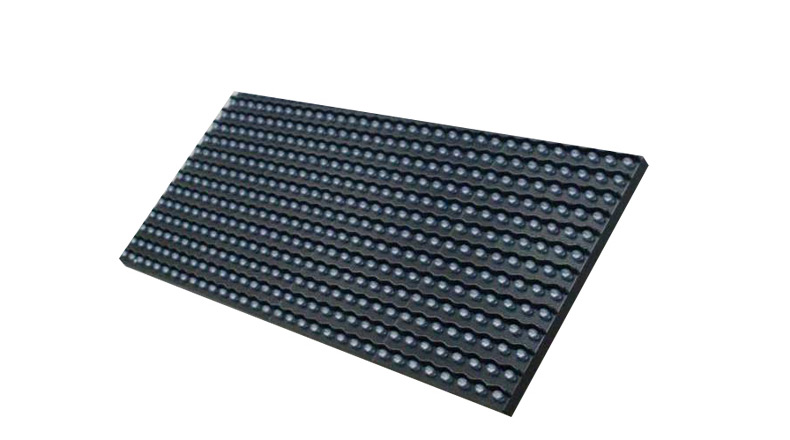

1) Basic Information about Single Color LED Screen.
2) Advertising formats: It can display texts, images, video, etc..
3) Multimedia structure, screen directly controlled by the computer .
4) Real-time 256 degree gray, reflect the true colors.
Important Knowledge of LED Display
1. What's the control system?
synchronization control system and asynchronous control system.
2. Whats your payment term? How long it takes to delivery?
We accept T/T and L/C, bank transfer,paypal etc. At least 40% deposit in advance, and the rest 60% before delivery.
3. Can it play HD video?
Yes, it can realize HD video function with controlling system.
4. What details need to be provided to get a quotation?
The buyer needs to provide pixel pitch,usage,dimension of screen and as more details as possible.
5. Can the LED table lamp be with eye-protection?
Yes.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
