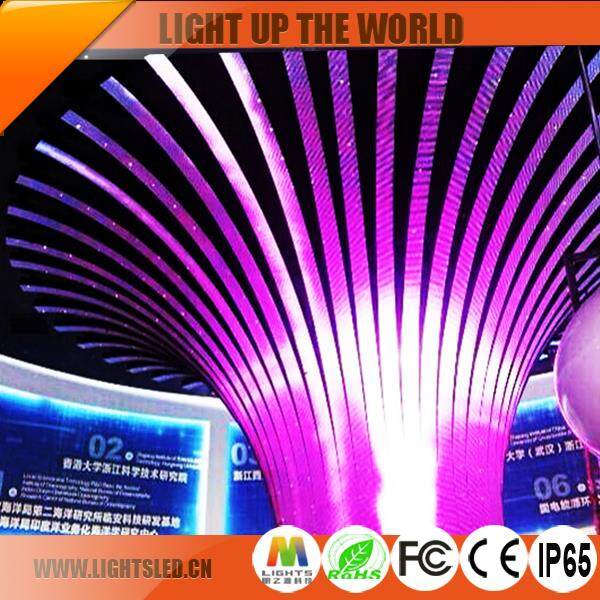

Item | P10 High Quality Special Shaped Digital LED Screen Display |
Model Number | P10 |
Pixel Pitch | 10mm |
Pixel Density(dots/m²) | 10000 |
Pixel Configuration | RGB |
LED Type | SMD3535 |
Module size(mm) | 320*160 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥10 |
Brightness(cd/m²) | ≥6000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 300-750 |
Scan Mode | 1/4 |
Protection Level | IP65 |
Cabinet Size(mm) | 960*960 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level: Color temperature is adjustable in terms of detailed requirements |
Working temperature | -20°C~80°C Life Span : 100,000hours |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Product Features
1) Even after the project, still provide you a lifelong persistent maintenance to your system, constantly upgrade and perfect system function and software.
2) Special-shaped LED Display Only need the components fee if any increased hardware equipment.

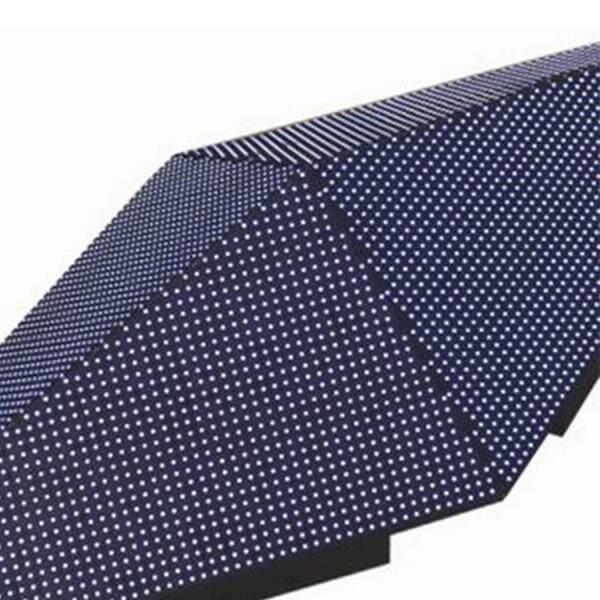

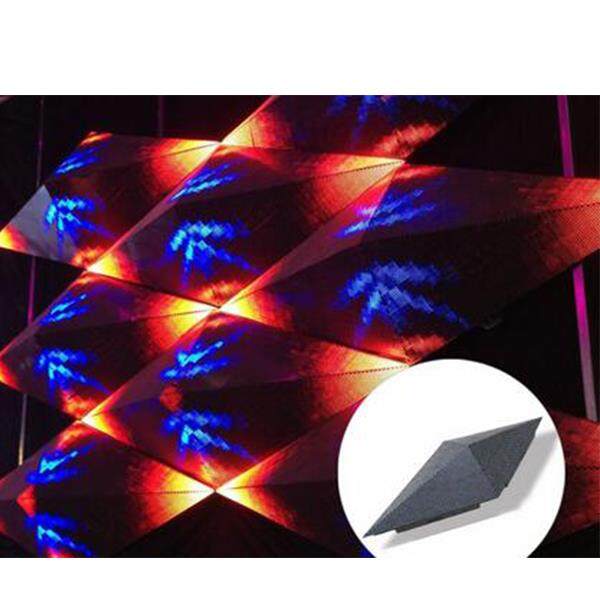

3) Unconventional Special-shaped LED Display is perfect for making any large room more interesting, perfect for shopping centers, airports and other public large space, which is sure to turn heads.
4) The color and brightness of LED screen can Sync adjustment, make LED screen display life like color performance.
Important Knowledge of LED Display
1. Why LED screens have different costs and prices?
Everything depends on the customers´ demands. The more resolution/sqm a screen has the closer will be the viewing distance without loosing detail looking at the screen from closeby. For that we always need the client to answer us several questions to determine the right LED screen size and resolution and come with the right proposal. Nothing is predetermined, but based on the needs of the client.
2. What is the refresh rate for LED screens?
The refresh rate of a LED screen is the number of times in a second that the LED screen hardware draws the data. This is distinct from the measure of frame rate in that the refresh rate for LED screens includes the repeated drawing of identical frames, while frame rate measures how often a video source can feed an entire frame of new data to a display.
3. Advanced Live Video Processor for LED Screens
With our advanced live video processor, the image can be adjusted horizontally and vertically to make the image or video fit the screen.
4. The total size of the LED screen?
The bigger or larger the LED screen the higher the cost. The prices are based on USD/sqm, which means that if the total size is 24sqm, the price will be 24 multiplied by the cost per sqm.
5. What is Viewing Angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
