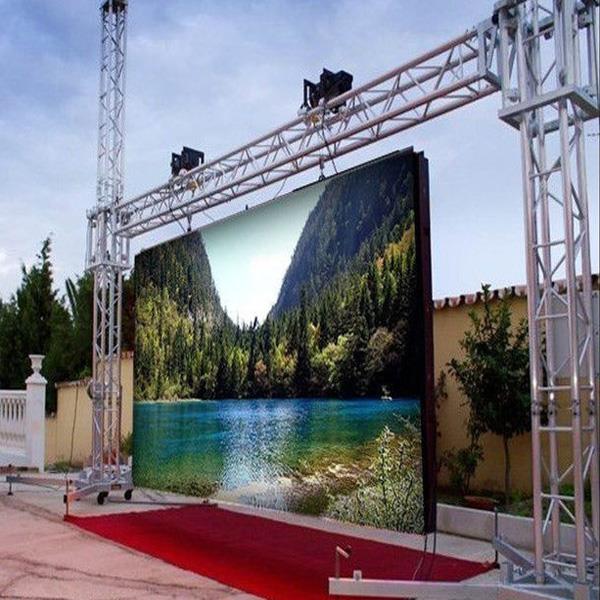

Item | Outdoor P10 DIP346 Rental LED Screen |
Model Number | P10 DIP346 |
Pixel Pitch | 10 mm |
Pixel Density(dots/m²) | 10000 |
Pixel Configuration | 1R1G1B |
LED Type | DIP346 |

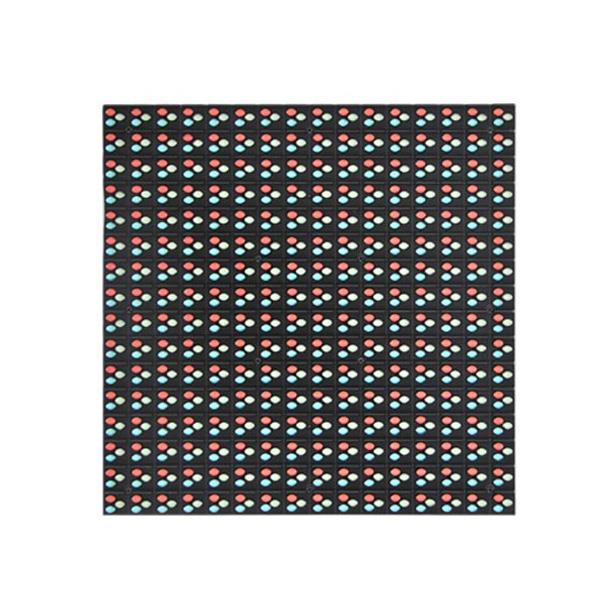

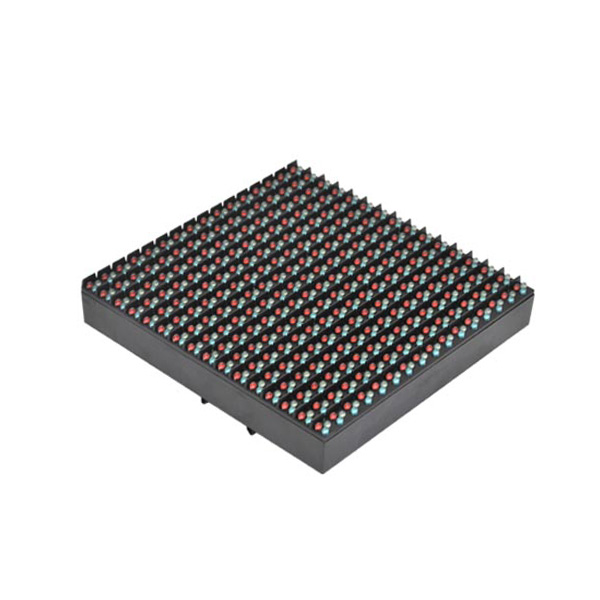

Module size(mm) | 160mm*160mm |
Module Resolution(dots) | 16*16 dots |
Min.Viewing Distance(m) | ≥10 |
Brightness(cd/m²) | 6500-7000 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 300-750 W |
Scan Mode | 1/ 4 |
Protection Level | IP65 |
Iron Cabinet Size(mm) | 960mm*960mm |
Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Permeation rate | 40% |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Lifespan | ≥100000 hours |
Environment Temperature | Storage: -40°C~+85°C |
Blind Spot Rate | ＜0.0001(led display industry standard is less than 0.0003) |
Control Mode | Video frequency synchronization |
Product Features
1) Noiseless power supply, quiet operation.
2) Test button on each cabinet, indicates the working condition before installation, time saving.
3) High refresh rate Up to 6000HZ, no scan line through TV camera, could be used for TV studio, control room, show room etc.
4) High gray scale ensures the display have good performance.
5) With wide viewing angle led lamps, could reach to 140 degree in horizontal and vertical way.
6) All the masks spray same color printing ensures the whole display with best color uniformity.
Important Knowledge of LED Display
1. What is LED display of the IP protection grade?
IP protection grade is composed of two digital, the first digital representation from the dust of lamps and lanterns, the level of the external things out, the second digit said moisture proof.
2. Why use a DVI display interface standard ?
(1) DVI display card interface is in line with the computer display interface of the international standards;
(2) without opening the chassis, to facilitate the installation;
(3) memory, dynamic screen display capabilities;
(4) hardware and software compatibility;
(5) to support all operating systems and application software, display flexibility and convenience;
(6) mass production, low cost, easy to maintain.
3. Can I use my own forwarder to transport the products for me?
Yes, if you have your own forwarder in Guangzhou, you can let your forwardership the products for you. And then you will no need to pay the freight to us.
4. How does your factory do regarding quality control?
Quality is priority. Great importance to quality controlling from the very beginning to the very end.
5. What about your pre-sale service and post-sale service?
For pre-sale service: We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
