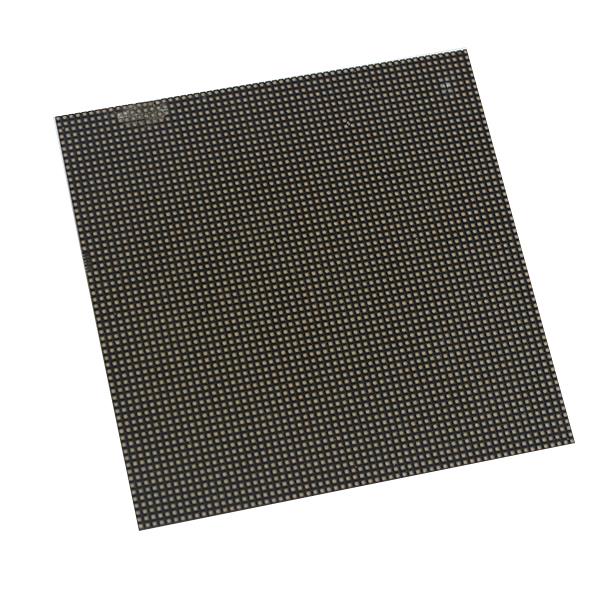

Item | Outdoor P6 Stadium LED Display |
Model Number | P6 |
Pixel Pitch | 6mm |
Pixel Density(dots/m²) | 27777 |
Pixel Configuration | RGB |
LED Type | SMD2727 |
Module size(mm) | 192*96 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥6 |
Brightness(cd/m²) | ≥6000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 240-480 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Cabinet Size(mm) | Customized |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level: Color temperature is adjustable in terms of detailed requirements |
Working temperature | -40°C~80°C Life Span: 100,000hours |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Control Type | Asynchronization (3G/ WiFi /USB )/Synchronization |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Product Features
1) Play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment.
2) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced.
3) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment.
4) Adding the anti-collision cap to improve players and staff safety conditions.
Important Knowledge of LED Display
1. How long could I receive the inquiry reply ?
You will get a reply within 24 hours.
2. What kind of led display do you offer ?
Different product offer different time frame warranty, but all product here we offer 1 year at least warranty
3. How is the after sales service ?
We have a professional team which is in all around the world , also a service hot-line dealing with your
complains and feedback.We also offer 24-hour online service to help you solving problems
4. How long will it take to deliver goods ?
We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working
days after we get your payment.
5. Are you a factory or trading company?
We are a factory
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
