Hot Selling P5 Outdoor Advertising LED Display Screen Panel Board Signs In Shenzhen LightS

If you're looking for the hot selling p5 outdoor advertising led display screen panel board signs in shenzhen lights made in China, please rest assured to wholesale the screens with our professional manufacturers and suppliers in China. They are all made in our professional factory and are sold at low price.



Product Parameters

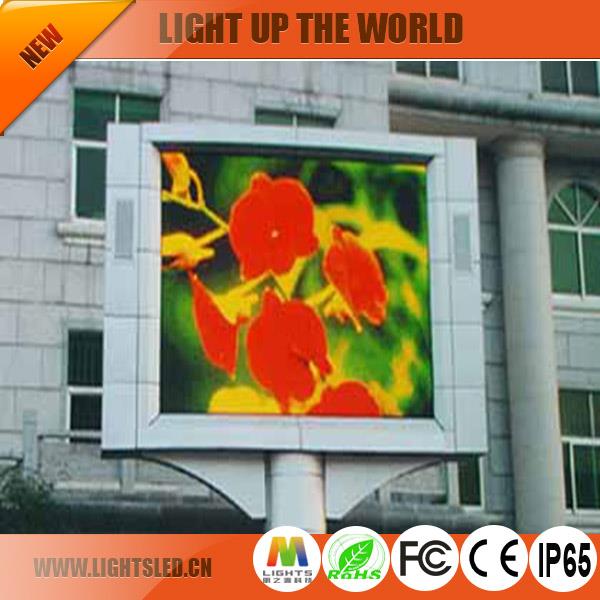

Item: Outdoor Full Color LED Display
Model Number: P5
Pixel Pitch: 5mm
Pixel Density(dots/m²): 40000
Pixel Configuration: 3 IN 1
LED Type: SMD2727
Module size(mm): 160*160
Module Resolution(dots): 32*32
Min.Viewing Distance(m): ≥5
Brightness(cd/m²): ≥7000
Viewing Angle(degree): ≤140°
Average Power Consumption(w/m²): 550-850
Scan Mode: 1/8
Protection Level: IP65

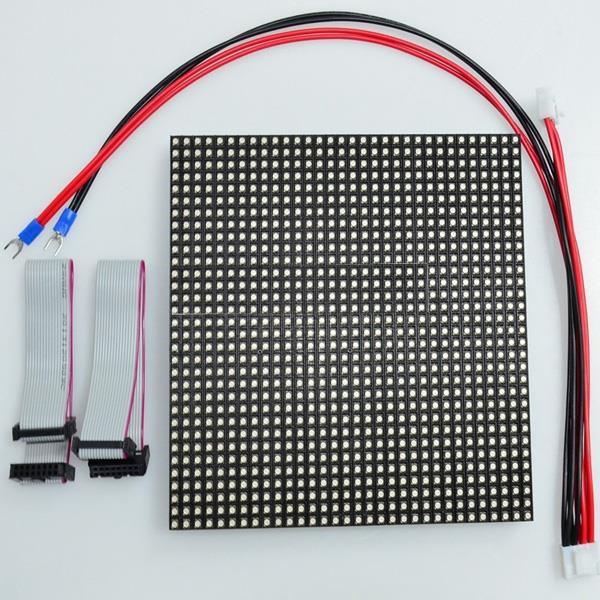

Module

Connecting Method Between Control system and Display terminals
Connect according to the sketch drawing below, make sure output DVI signal from computer well connected with the input terminal on sending card. And Output signal from sending card to the receiving card in the cabinets well. Then Power on.

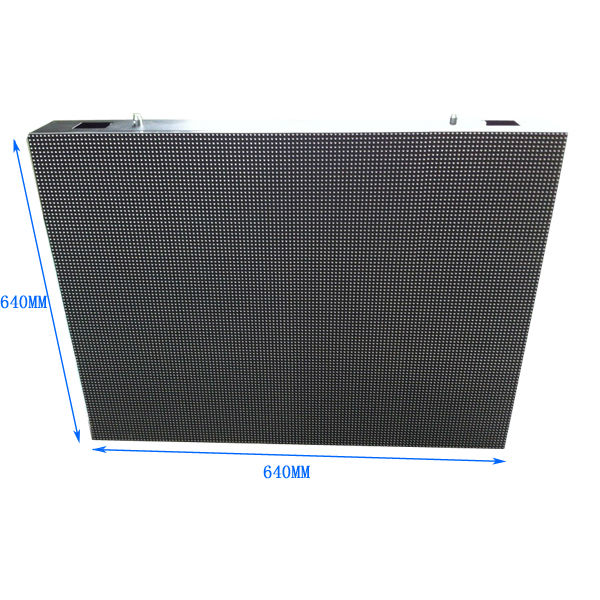

Cabinet
