Item | Outdoor Full Color LED Display |
Model Number | P8 |
Pixel Pitch | 8mm |
Pixel Density(dots/m²) | 15625 |
Pixel Configuration | RGB |
LED Type | SMD3535 |

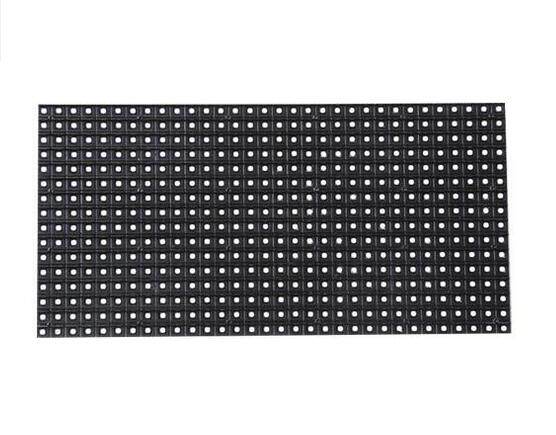

Module size(mm) | 256*128 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥8 |
Brightness(cd/m²) | ≥7000 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 500-850 |
Scan Mode | 1/4 |
Protection Level | IP65 |

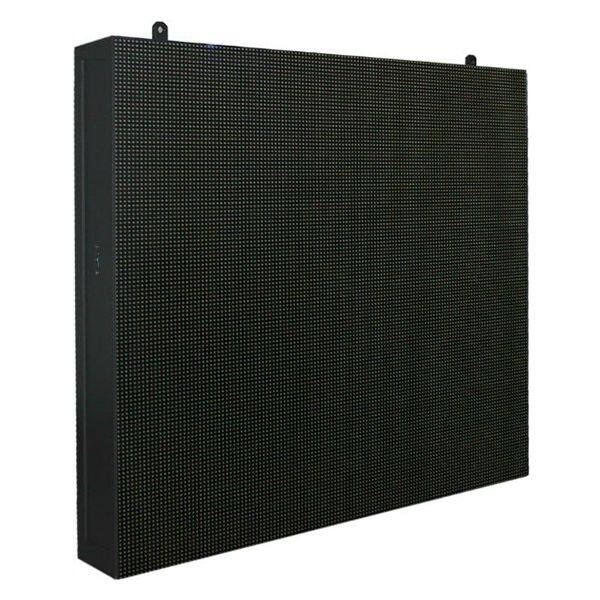

Cabinet Size(mm) | 1280*1024 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | 14BIT Recommended |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters, max transmission distance is 130 meters. |
Product Features
1) Outdoor P8 SMD LED display is suitable for both indoor and outdoor, the cost performance is better than DIP LED display.
2) P8 outdoor SMD LED displays is moisture-proof, anti-static and dust free, it also gets a unique waterproof processing.
3) Bigger viewing angle by 3IN1 SMD LED display, better color mixture and gorgeous image quality. Quick and easy assembly and removing system can greatly save the loading time.
Important Knowledge of LED Display
1. Why outdoor screen production cycle is long?
(1) procurement of raw materials: the LED lamp procurement cycle is longer, especially imported die, order cycle takes 4-6 weeks;
(2) The production process is complex: subject to the PCB design, production casing, plastic irrigation, adjusting white balance;
(3) strict structural requirements: the general cabinet design, the need to consider the wind, rain, lightning.
2. Display's aspect ratio in general?
Graphic screen: to determine the content displayed; Video Screen: general close to 4:3 or 4:3; the ideal ratio is 16:9.
3. What is a Digital Billboard?
Digital billboards are the latest advancement in outdoor advertising. Using LED technology, digital billboards display large format imagery that can be changed, quite literally, at the touch of a button. Short term advertisements, multiple rotating advertisements on the same billboard, and even animations are all possible with OAI's digital billboards.
4. What is the lifespan of an LED display?
An LED display will last 100,000 hours or more when using the standard energy level of 20 milliamps. That's over 11 years! Compare that to typical incandescent bulbs which last up to only 2,000 hours, or about 3 months! One of the major benefits of LED technology is long life and low energy use.
5. Where are Digital Billboards best utilized?
LED billboards are available in a variety of sizes, shapes, pixel densities, and viewing angles. This allows digital billboards to be used flexibly in a wide range of locations, from highways and buildings, to sports arenas and entertainment stages. We encourage you to discuss your goals with one of our representatives to ensure that the LED display you choose best meets your needs.
