Item | Outdoor mobile P10 LED display |
Model Number | P10 |
Pixel Pitch | 10mm |
Pixel Density(dots/m²) | 10000 |
Pixel Configuration | RGB |
LED Type | DIP346 |
Module size(mm) | 320*160 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥10 |
Brightness(cd/m²) | ≥7000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 240-480 |
Scan Mode | 1/4 |
Protection Level | IP65 |
Cabinet Size(mm) | Customized |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Working temperature | -40°C~80°C Life Span :100,000hours |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Control Type | Asynchronization (3G/ WiFi /USB )/Synchronization |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Product Features
1) Newly developed module for the plastic cover, hence, smaller gaps between modules and better flatness of the whole screen.
2) The module size 320x160mm is much bigger than the conventional one. Fewer modules will be used for one cabinet of the same size. It will save some materials, like flat cables, power cables and screws.

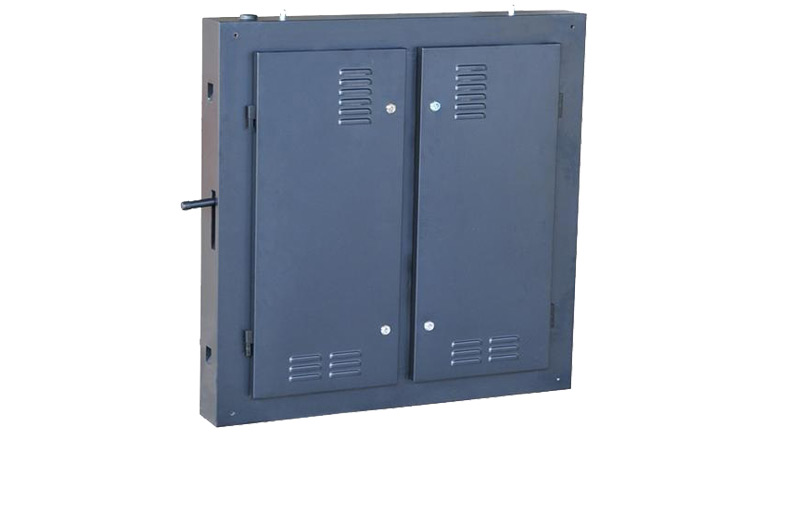

3) The lead time is shorter. Because we have 960x960mm universal blank cabinets in stock and we start the cabinet assembling as soon as the order is confirmed.
4) It will be much easier for installation, operation and maintenance because of universal module and universal cabinet. Also, it is easier to promote the products to the clients.
5) It is convenient to update the screens. People can change all the modules with other kind of modules due to the universal module size 320x160mm.
Important Knowledge of LED Display
1. How long could I receive the inquiry reply?
You will get a reply within 24 hours.
2. What kind of led display do you offer?
Different product offer different time frame warranty, but all product here we offer 1 year at least warranty.
3. How is the after sales service?
We have a professional team which is in all around the world , also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
4. How long will it take to deliver goods?
We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment.
5. Are you a factory or trading company?
We are a factory.
6. What’s the score system you recommend?
The score system now we recommend is for international standard, including: FIFA,NCAA,American football,IIHF,MLB
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
