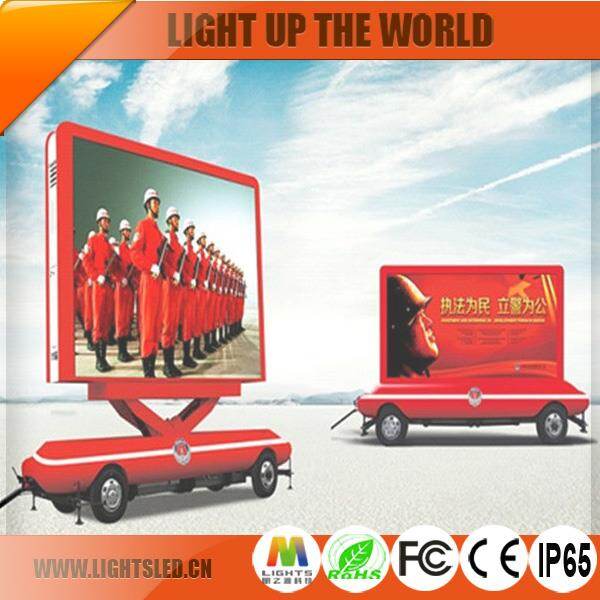

Item | P10 DIP Mobile Billboard LED Display with High Brightness |
Model Number | P10 |
Pixel Pitch | 10mm |
Pixel Density(dots/m²) | 10000 |
Pixel Configuration | RGB |
LED Type | DIP246/DIP346 |

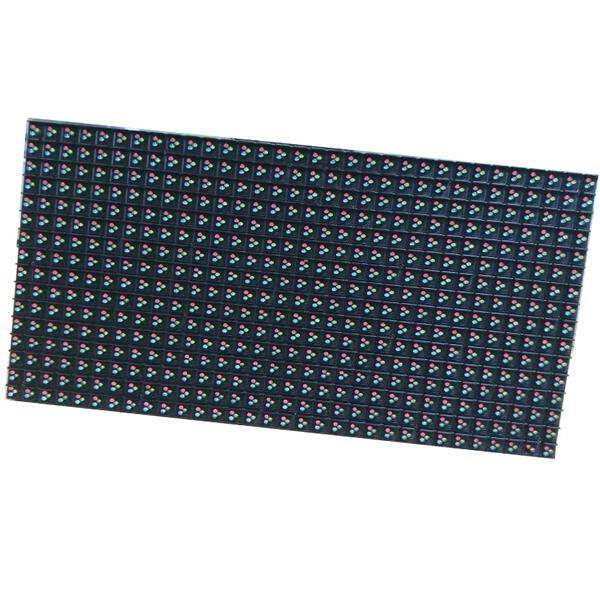

Module size(mm) | 320*160 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥10 |
Brightness(cd/m²) | ≥7000 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 500-850 |
Scan Mode | 1/4 |
Protection Level | IP65 |
Cabinet Size(mm) | 960*960 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Product Features
1) Ultimate system reliable for new products led TV advertising popular mobile led video display new product.
2) Fast set-up,easy service.
3) Customized design for outdoor giant multi-color digital advertising P8 outdoor mobile LED video display.
4) True color reproduction & authentic video quality for waterproof good price P8 outdoor Mobile LED advertising screen display.
5) Long-term Brightness: 7000 nit brightness capacity through product lifetime of the LED display screen.
Important Knowledge of LED Display

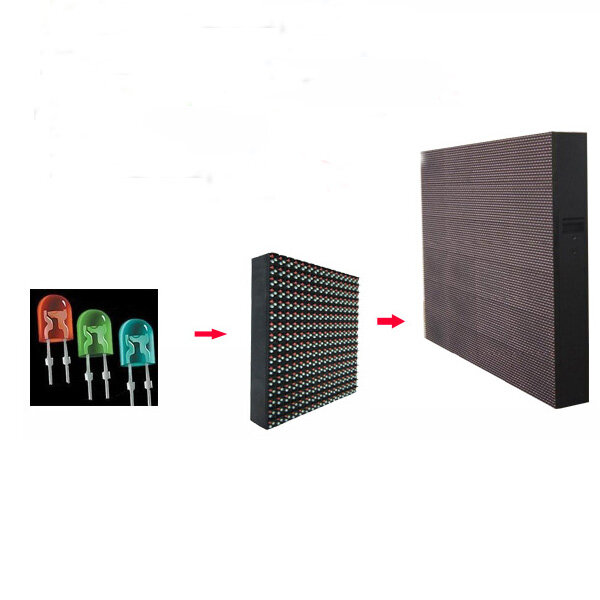

1. What is a pixel?
A pixel is a cluster of LEDs (one red, one blue and one green on a Prismview display) which, as a component of the overall image, represents one point of illumination. The combination of these individual levels of the three colors forms the display image.
2. What is LED display of the IP protection grade?
IP protection grade is composed of two digital, the first digital representation from the dust of lamps and lanterns, the level of the external things out, the second digit said moisture proof.
3. How about the warranty?
1-3 years warranty.
4. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 7 days
5. What's the control system?
For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use Onbon, or Xixun control system.
