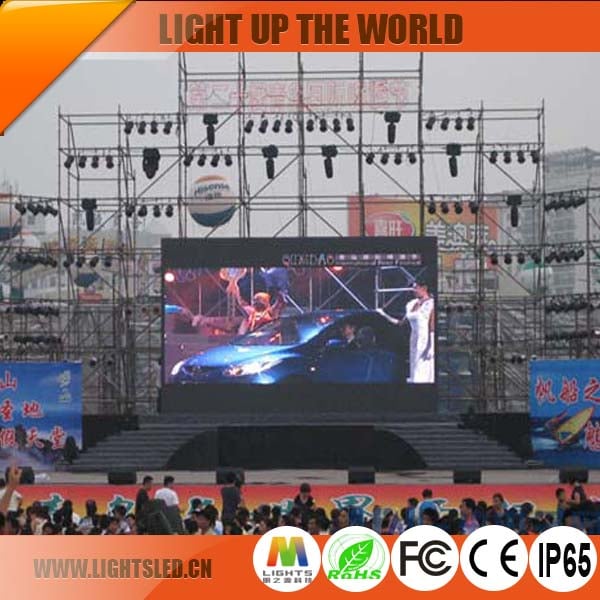

Item | Stage outdoor P6 LED display |
Model Number | P6 |
Pixel Pitch | 6mm |
Pixel Density(dots/m²) | 27777 |
Pixel Configuration | RGB |
LED Type | SMD2727 |
Module size(mm) | 192*192 |
Module Resolution(dots) | 32*32 |
Min.Viewing Distance(m) | ≥6 |
Brightness(cd/m²) | ≥6000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 240-480 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Cabinet Size(mm) | Customized |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Working temperature | -40°C~80°C Life Span: 100,000hours |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Control Type | Asynchronization (3G/ WiFi /USB )/Synchronization |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Product Features
1) Climbing institution applied, support climb to screen directly for maintenance, single foot pedal bearing more than 300 kg.
2) Achieve shaped and curved install function. Could be assembled with more differentshapes to meet the different install design requirements of different application areas.
3) Support Seamless Splicing of Inner Arc and Outer-arc Support both Inner arc and outer-arc splicing.
For installation, minimum outer-arc 20 degree, maximum inner arc 30 degree.
4) Automatic install design,a creation in the world.Avoid complicated calibration work,no need debugging and resending the data after changing led modules, receiving cards, sending cards, start to run directly by power supplied.
5) Quick fixed by lock catch, easily removed or installed just by turning gently, superconvenient in maintenance.
Important Knowledge of LED Display
1. What kind of led display do you offer ?
Different product offer different time frame warranty, but all product here we offer 1 year at least warranty
2. Are you a factory or trading company?
We are a factory
3. Where is your factory located?
Our factory is located in Shenzhen City, Guangdong Province, China
4. How to get the price list?
Price list Pls Email /call /faxto us with items name .
5. Does the blower have CE/ROHS certificate?
Yes, we offer CE/ROHS certificated as to your requirements.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
