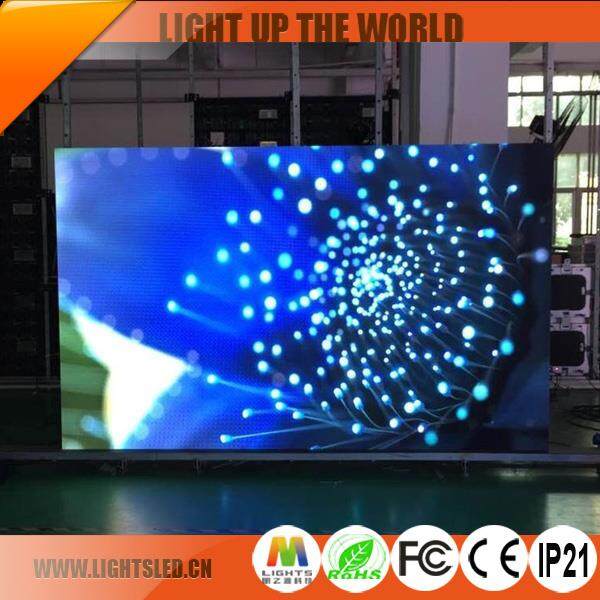

Item | Stage LED Screen |
Model Number | P3 |
Pixel Pitch | 3mm |
Pixel Density(dots/m²) | 111111 |
Pixel Configuration | 3IN1 |

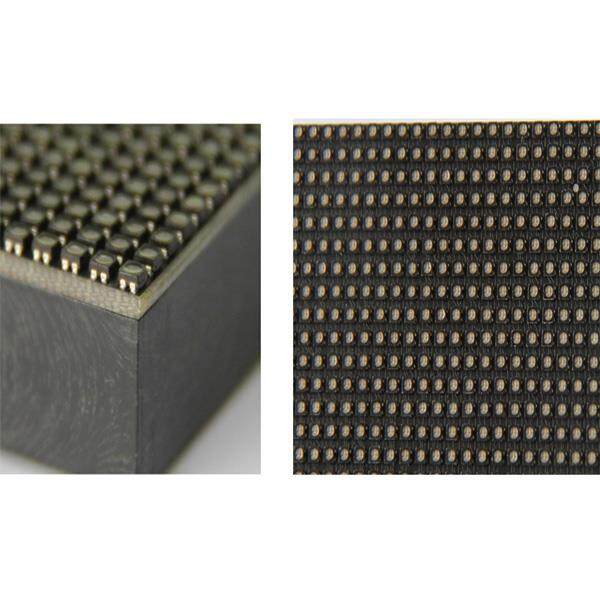

LED Type | SMD2121 |

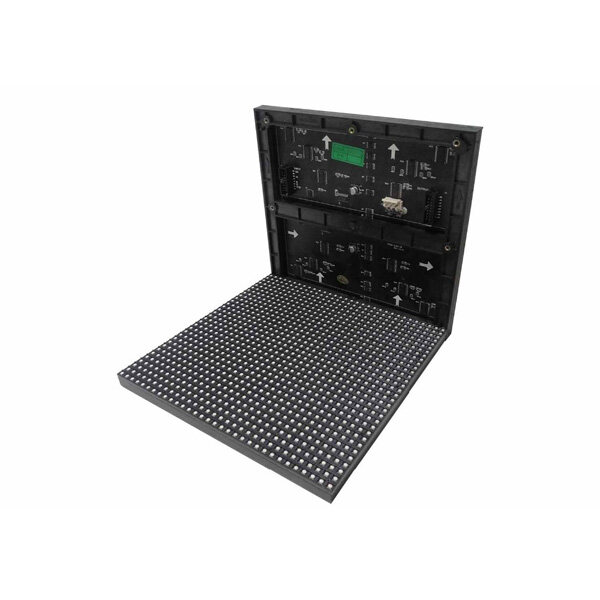

Module size(mm) | 192*192 |
Module Resolution(dots) | 64*64 |
Min.Viewing Distance(m) | ≥3 |
Brightness(cd/m²) | ≥1500 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 400-750W |
Scan Mode | 1/16 |
Protection Level | IP21 |
Cabinet Size(mm) | 576*576 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Products Feature:
1) Model: P3-I32S-SMD2020-64x32-L576H576.
2) Brightness: ≥1500 cd /㎡.
3) Refresh frequency: ≥1200Hz.
4) Viewing angle: 120°.
5) P3 indoor video LED wall, high refresh frequency and gray grade, wide viewing angle, customized cabinet and die-cast aluminum cabinet, different LED control systems are at your option.
Important Knowledge of LED Display
1. Can it play HD video?
Yes, it can realize HD video function with controlling system.
2. What is your trade assurance?
100% product quality protection
100% product on time shipment protection
100% payment protection for your covered amount.
3. Can the LED table lamp be with eye-protection?
Yes.
4. What details need to be provided to get a quotation?
The buyer needs to provide pixel pitch,usage,dimension of screen and as more details as possible.
5. Is there any cheap shipping cost to import to our country?
For small order,express will be the best.And for bulk order,sea ship way is best but take much time.For urgent orders,we suggest via air to airport.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
