Item | Stage LED Screen |
Model Number | P2.5 |
Pixel Pitch | 2.5mm |
Pixel Density(dots/m²) | 160000 |
Pixel Configuration | 3IN1 |
LED Type | SMD2121 |
Module size(mm) | 160*160 |
Module Resolution(dots) | 64*64 |
Min.Viewing Distance(m) | ≥2.5 |
Brightness(cd/m²) | ≥1500 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 350-600W |
Scan Mode | 1/32 |
Protection Level | IP21 |
Cabinet Size(mm) | 480*480 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100 level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Products Feature:

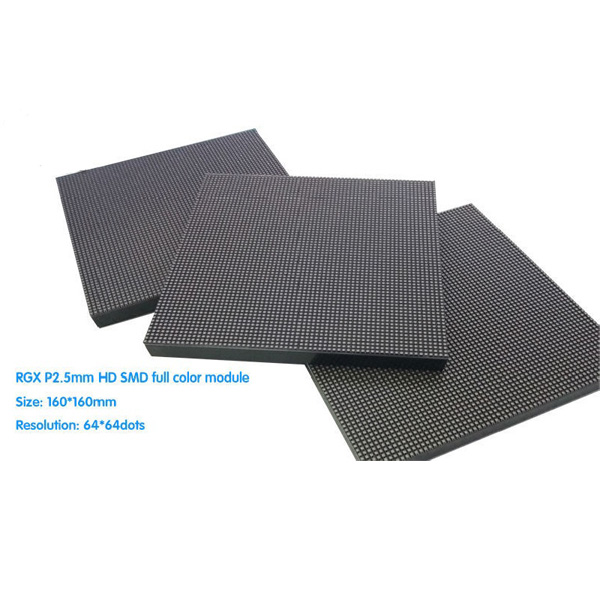

1) Model: P2.5- SMD2121-64x64-L480H480.
2) Brightness: ≥1500 cd/㎡
3) Refresh frequency: ≥960Hz.
4) Viewing angle: 120°.

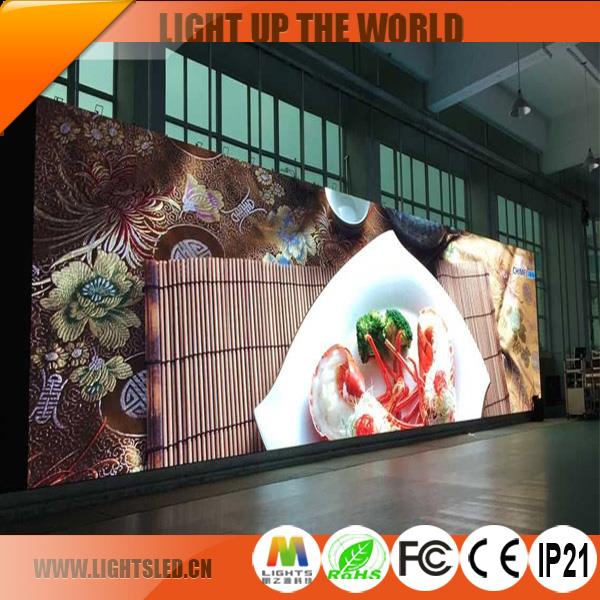

5) P2.5HD indoor LED video display screen, die-cast aluminum rental cabinet, perfect solution for both rental screen and fixed installation commercial screen. NOVASTAR, LINSN control system
Important Knowledge of LED Display
1. Can it play HD video?
Yes, it can realize HD video function with controlling system.
2. What's the control system?
synchronization control system and asynchronous control system.
3. Does your company offer OEM service?
Yes, We accept OEM.
4. Whats your payment term? How long it takes to delivery?
We accept T/T and L/C, bank transfer,paypal etc. At least 40% deposit in advance, and the rest 60% before delivery.
5. What details need to be provided to get a quotation?
The buyer needs to provide pixel pitch,usage,dimension of screen and as more details as possible.
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
