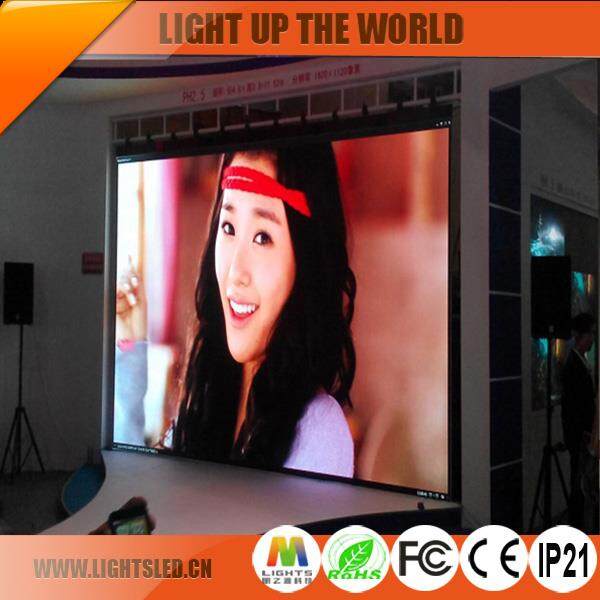

Item | P2 Indoor Full Color LED Display |
Model Number | P2 |
Pixel Pitch | 2mm |
Pixel Density(dots/m²) | 250000 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD1010 |
Module size(mm) | 256*128 |
Module Resolution(dots) | 128*64 |
Min.Viewing Distance(m) | ≥2 |
Brightness(cd/m²) | ≥1200 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 500-750 |
Scan Mode | 1/24 |
Protection Level | IP21 |
Cabinet Size(mm) | 512*512 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is 300-600HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | Recommended 14 BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Product Features
1) Die-casting aluminum panel, to achieve high precision process to seamless and good thermal dissipation
2) Point by point highlights, color calibration, making sure whole screen brightness and color consistency with highly reductive
3) Wide viewing angle, high contrast, high brightness (adjustable), high intensity (14bit gradation processing), high refresh, softer image, display lifelike images to meet the high-speed motion picture display
4) Low brightness with high gray scale, adjustable screen brightness and height to meet different requirements on brightness in different indoor place;
5) Perfect screen performance.
Important Knowledge of LED Display
1. How can i place an order?
Please inform your requirements as clear as possible. So we can send you the offer ASAP.it is better to contact us with Skype/email /phone within project beginning, in case of any delays.
2. What is a pixel?
A pixel is a cluster of LEDs (one red, one blue and one green on a Prismview display) which, as a component of the overall image, represents one point of illumination. The combination of these individual levels of the three colors forms the display image.
3. What kind of display we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display/stadium LED Display for choosing.
4. What's the control system?
For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use Onbon, or Xixun control system.
5.What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 7 days
To receive a catalog,pricing information and a sample of a sign for your needs,just leave an Inquiry to get a Quick Quotation by those contact way.
