Product Description
technical parameters | P2 |
min. viewing distance | 2m-50m |
resolution（dot/m²） | 250000 |
pixel pitch | 2mm |
IP rating | IP21 |
horizontal view angle | 160° |
vertical view angle | 140° |
driving method | 1/32s |
module size（mm） | 256*128 |
cabinet size（mm） | 512*512 |
maintenance mode | front |
MTBF | 10000Hrs |
max power consumption | 1000W/m² |
avg power consumption | 330W/m² |
brightness（mcd/m²） | 900-1200 |
life span | 100000hours |

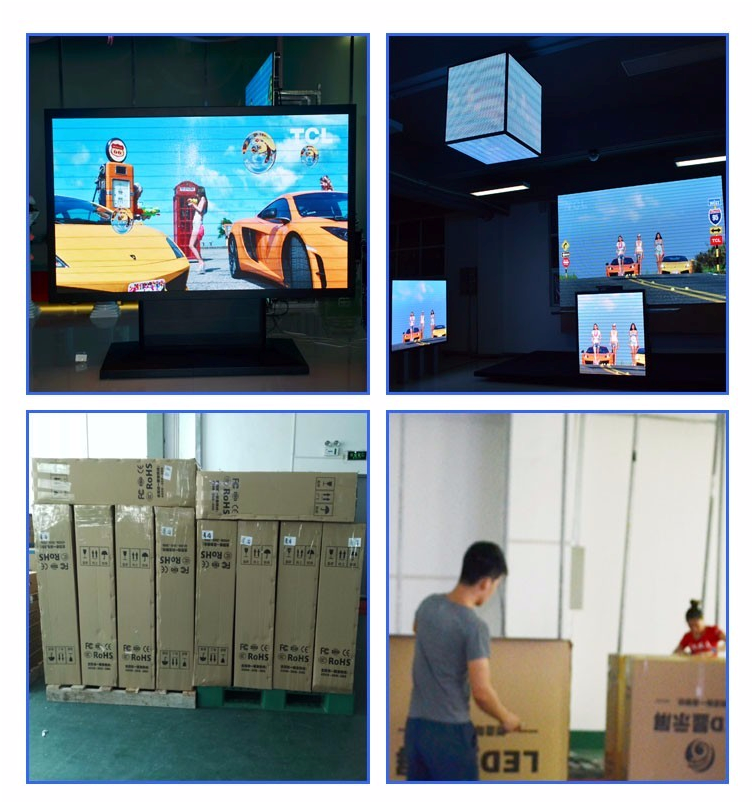

Detailed Images
The lamp beads are used SMD1010, and Power supply is used 200V, Receiving card is used LINSN.
Die-casting Aluminum cabinet, More convenient to transport and installation.
Our Advantage:
1.Goods be examined before delivery, Professional QC teamOur Advantage:
2.Variety of customized products to satisfy different requests.
3.Highest cost-effective price.
4.With pure golden wire connection in LED.
5.The price depends on the quantity. We can provide you with the best competitive price in the market with the same or even better quality.
6.All inquiry will be answered within 24 hours by a well-trained and experienced staffs.
7.Top Quality & Reasonable Price & Responsible After Service
8.All private information will be well protected.
