Flexible/ Foldable Led Curtain Display Screen
Features
1. The lattice structure of the novel with the features of folding, twisting, light-weight, good appearance, good adaptability to the environment;
2. Innovative installation: quick, simple, flexible;
3. Unique Feature: embedded wireless control technology for more convenient and simple operation;
4. High-speed video processing technology for rich display, unique effect and strong appeal.
Product Description

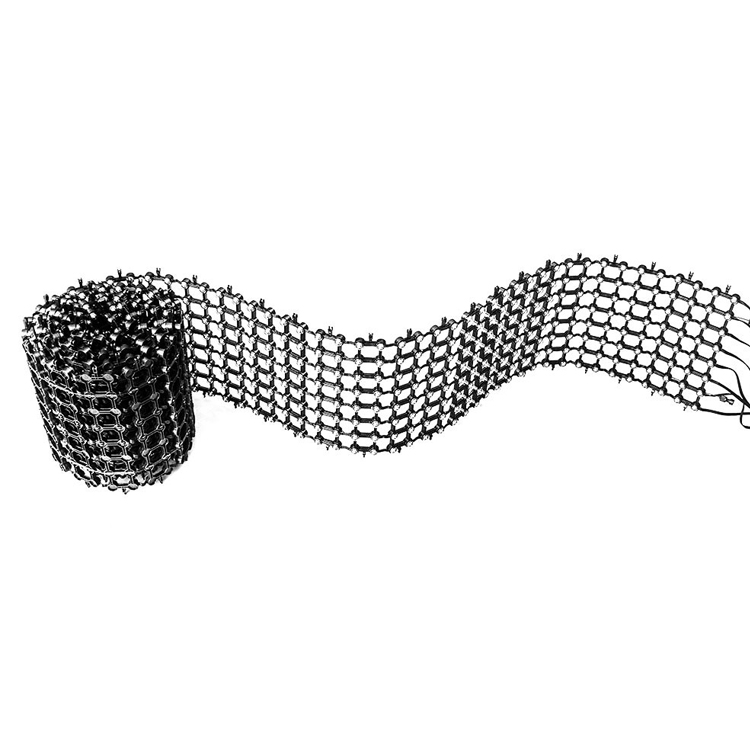

The curtain can be arbitrary bent into arc , circle , waves , etc, size and color can be customized.
high transparency can make the screen and stage lighting as a whole, rendering vivid stage effect.
Fast lock design can ensure the curtain quickly remove and install without tools.
Lock the two joint on the hanging beam to achieve quickly lifting of the curtain without any tools.
LED lights can be removed separately, are used to implement various creative style.
curtain front and back are IP65, head to tail with waterproof connector.
Detailed Image
1 pixel led lamp

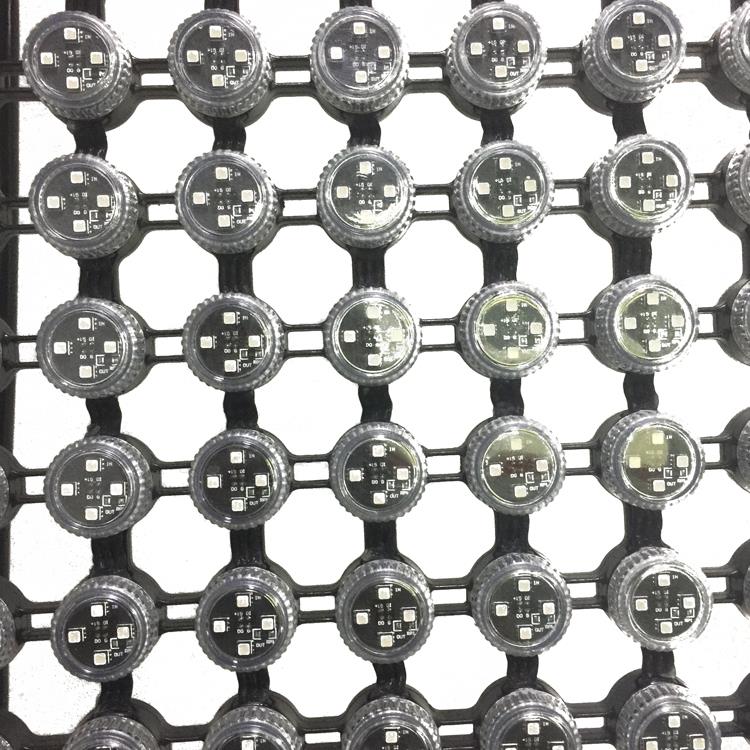

4 pixels led lamp
6 pixel led lamp
8 pixel led lamp
Specification
Model No. | G1-37 | G1-56 | G4-37 | G6-56 | G8-75 | G8-56 |
Pixel Pitch | 37.5mm | 56.25mm | 37.5mm | 56.25mm | 75mm | 56.25mm |
LED brand | National star led brand | |||||
LED type | SMD3535 | 4*SMD3535 | 6*SMD3535 | 8*SMD3535 | ||
Panel Size(mm) | 300*4800 | 450*7200 | 300*4800 | 450*7200 | 600*9600 | 450*7200 |
Panel Resolution | 8*128 dots | |||||
Brightness | 1200nits | 800nits | 5400nits | 3300nits | 3600nits | 6500nits |
Max.Power Consumption | 230W/sqm | 100W/sqm | 500W/sqm | 400W/sqm | 350W/sqm | 500W/sqm |
Transparency | 70% | 81% | 55% | 75% | 85% | 75% |
Weight/sqm | 10.5kg | 5.5kg | 10.5kg | 5.5kg | 3.5kg | 5.5kg |
Protection Level | IP65 | |||||
Gray Scale | 16bits | |||||
Refresh Rate | 1000HZ | |||||
Application | indoor and outdoor | |||||
Driving Mode | static | |||||
Voltage | DC7.5V | DC15V | DC24V | DC15V | ||
Working Environment | Temperature -20℃—+40℃ ,humidity 10-90% RH | |||||
Life Time | 50000hours | |||||
