pixel pitch 4.81mm
Outdoor Rental LED Display
Light weight
Good Heat Dissipation
Low Power Consumption
Convenient Installation
Easy Move
Product parameters
Item | P4.81 Indoor Rental LED Wall Display Mobile Screen for Advertising |
Model Number | P4.81 |
Pixel Pitch | 4.81mm |
Pixel Density(dots/m²) | 43222 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD2020 |
Module size(mm) | 250*250 |
Module Resolution(dots) | 52*52dots |
Min.Viewing Distance(m) | ≥4.81 |
Brightness(cd/m²) | ≥1500 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 550-850 W |
Scan Mode | 1/ 24 |
Protection Level | IP21 |
Iron Cabinet Size(mm) | 500*500 |
Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14 BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Lifespan | ≥100000 hours |
Environment Temperature | Storage: -40°C~+85°C |
Blind Spot Rate | ＜0.0001(led display industry standard is less than 0.0003) |
Control Mode | Video frequency synchronization |
Product feature
1. Accurate position of the locating dowel makes the surface between cabinets flat;
2. Made through CNC, Assembly accuracy 0.1mm, Seamless Assembly;
3. No granular spots and mosiac on the screen, High-degree of color coordinates;
4. Clearer and vivider piture, Seamless, No chromatic;
5. Large viewing angle, Soft image, High resolution;
6. Multi-layer circuit PCB, Lower consumption, Fast Heat-emmiting, Longlife, High stability;
7. Die-casting Aluminum Cabinet, Lighter and Slimmer, High accuracy;
8. Easy to assemble and detach the cabinets;
9. Working Noise: Less than 40DB, Have no influence on the viewing effect;
10.SMD2020led, Ultra-low decay, Weather resistance;
11.High contrast ratio up to 5000:1;
12.SMD full color led chip.
Module

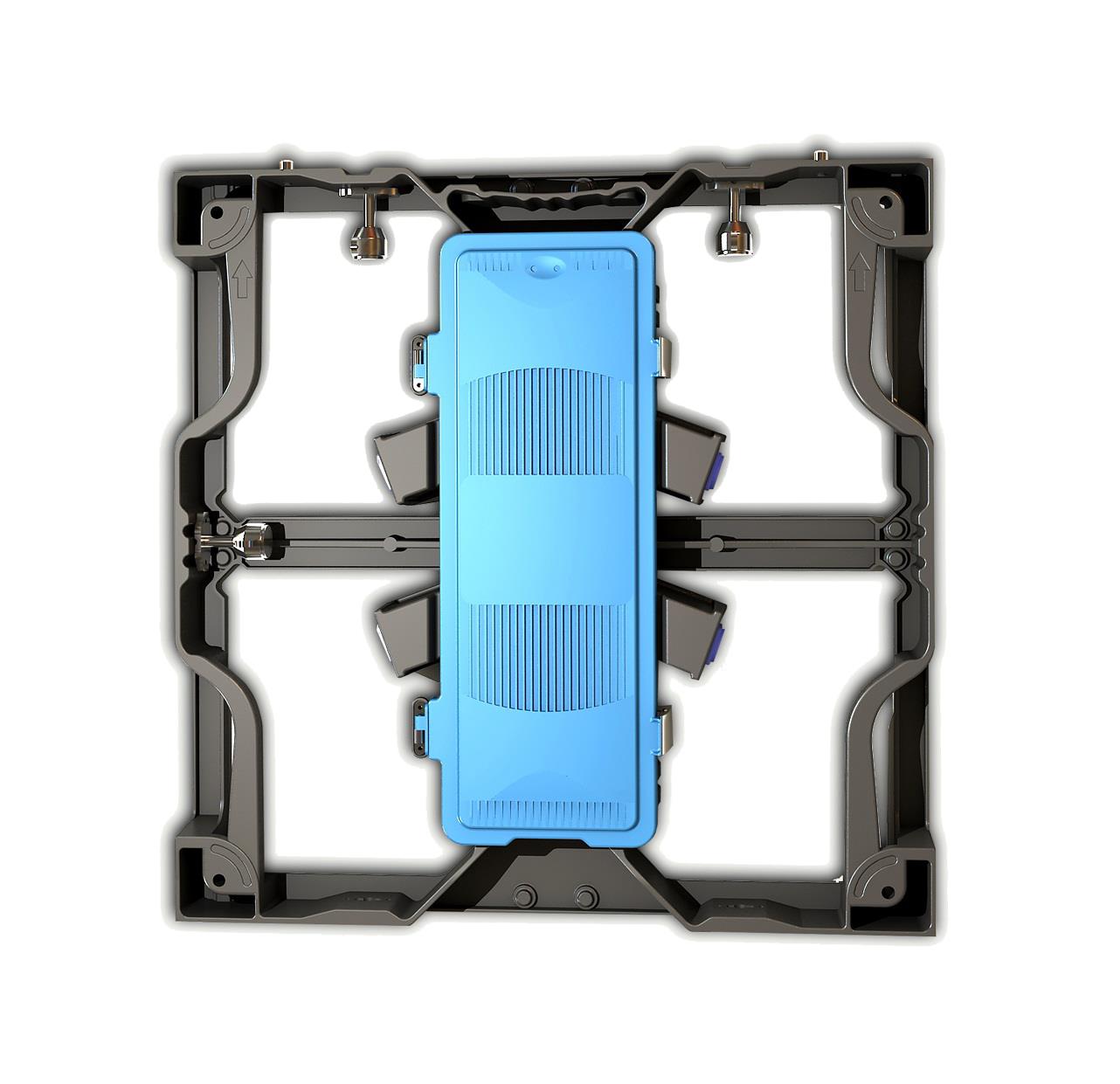

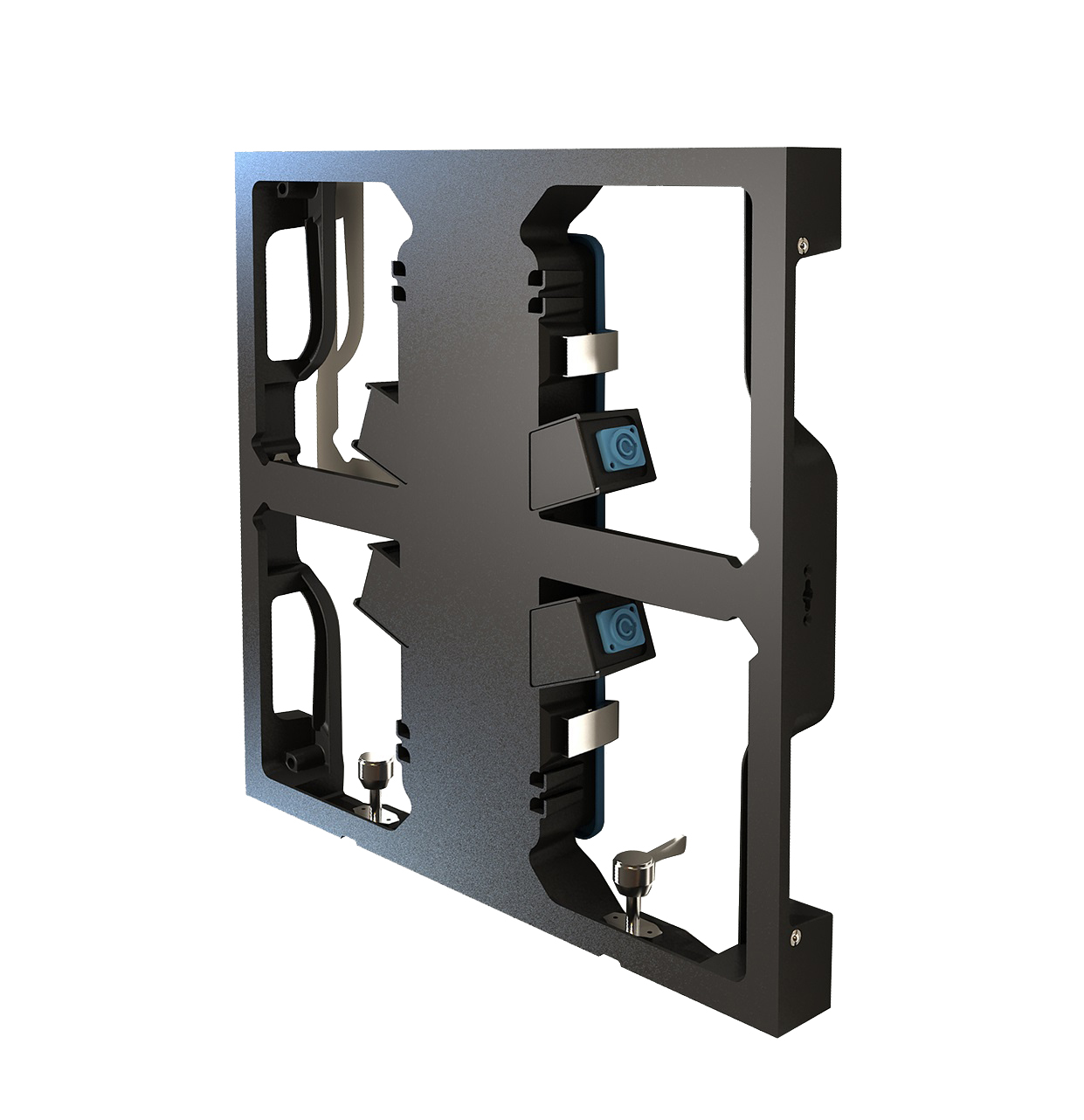

Die-casting Aluminum Cabinet
