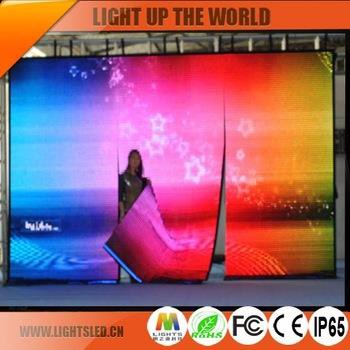

P6 SMD Indoor Flexible LED Display, Soft LED Screen
Product Features

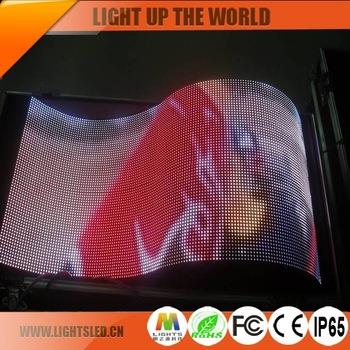

1) Flexible digital screen soft led module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving, it won't break LEDs as well design of mask covers.
2) LED flexible display Module with small-unit and flexible design,makes possibility of more complicated shapes for the video show.
3) Assembling screen with soft led modules directly,saving time and effort,easy operation.
4) Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.
5) No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
6) Strict quality control and long-term application experience verified the stability and excellent performance by using Nationstar LED, and MBI5124 Driving IC for high refresh rate and performance.
7) Widely applied in shaped stage background/exhibition/shopping mall etc.
Item | P6 LED Flexible Digital Display Bendable Soft Screen |
Model Number | P6 |
Pixel Pitch | 6mm |
Pixel Density(dots/m²) | 27777 |
Pixel Configuration | RGB |
LED Type | SMD3528 |
Module size(mm) | 192*192 |
Module Resolution(dots) | 32*32 |
Min.Viewing Distance(m) | ≥6 |
Brightness(cd/m²) | ≥1000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 240-480 |
Scan Mode | 1/16 |
Protection Level | IP21 |
Cabinet Size(mm) | Customized |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level: Color temperature is adjustable in terms of detailed requirements |
Working temperature | -20°C~80°C Life Span :100,000hours |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Control Type | 3G/ WiFi /USB Memory: 4G |
FAQ
Important Knowledge of LED Display
1. What is LED?
LED stands for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel. For instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module Size and Module Resolution?
LED Type is the description of LED lamp. For instance, the brand, the shape in physical, the size of the lamp etc.
Module Size is the measurement of a module.
Module Resolution is the number of pixels per module.
4. What is Drive Method, Driving IC and Power Supply?
Drive Method: We always use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, which are used to control the LED lamps, and as a bridge between the control system and lamps.
Power Supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is Viewing Angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
