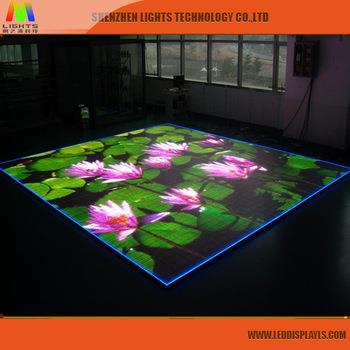

P6 P8 Interactive Led Dance Floor Screen
Specification:
Item | Outdoor SMD Full Color LED Floor Tile Display |
Model Number | P8 |
Pixel Pitch | 8mm |
Pixel Density(dots/m²) | 15625 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD3535 |
Module size(mm) | 256*128 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥8 |
Brightness(cd/m²) | 5500-5800 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 550-900 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Cabinet Size(mm) | 1280*1024 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Applications:
Features:
High capability of load-bearing
Professional structure for the heavy bearing.The capability of load-bearing could be reach 500KG /sqm, its available for car driver above sceen when floor screen working.
Easily maintenance
Automatically detection for power & signal working status.Any problem could be feedback at once for timely maintenance.
Modular design
Modular design, any cabinet could removed and replace when it can't work well.
High IP level
It could reach to IP65 protect level. Outdoor application is available.
Extremely Hard-wearing cover ;
The cover was made of High- strength PC engineering-plastics. high capability of wearing-resistance, scratch resistance .
Aluminum alloy structure design
The main structure is made of aluminum alloy material, the product more light and strong, and excellent heat conduction characteristics ;
Excellent heat dissipating
Special heat-disspating channel design to ensure hot radiate rapidly and effectively .
Wide viewing angle design
Horizontal viewing angle 180 degree without black block.
Professional connector plug
Power & signal connector could reach to IP 65. Easy assembling and removing safety.
