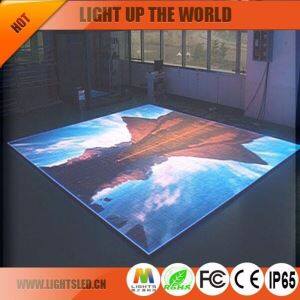

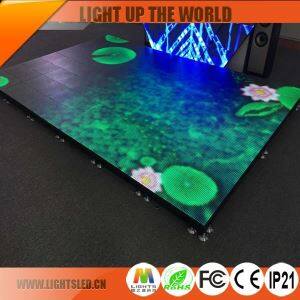

Floor tile of led display P5 interactive dancing floor led screen
High definition (40000dots/sqm) with an outstanding image and video quality for indoor usage
2 Wide view angle:140 in horizonal and 90 in vertical.for indoor full color
3 High refresh rate (greater than 800Hz-4000Hz)with software adjustable, suitable for filming.
4 High gray scale (16 bits) with perfect visual performance.
5 High Contras ratio (3000:1) with black mask and black coating technique.
6 High color uniformity and clear image can bring you a vivid audio visual effect.
7 Special design and advanced SMT technology for indoor led screen
improves the heat dissipation for indoor led signboard
8 High reliability and long lifespan (MTBF ≥ 5000 hours).
9 Low power consumption(200w/sqm) thus more energy saving.
10 Cabinet type , Regular shape and special shape （such as curve, round),
Easy for assembling and connection with the connector added
Item | Indoor SMD Full Color LED Floor Tile Display |
Model Number | P5 |
Pixel Pitch | 5mm |
Pixel Density(dots/m²) | 40000 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD3528 |
Module size(mm) | 320*160 |
Module Resolution(dots) | 64*32 |
Min.Viewing Distance(m) | ≥5 |
Brightness(cd/m²) | 1200-1500 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 280-500 |
Scan Mode | 1/16 |
Protection Level | IP21 |
Cabinet Size(mm) | 640*640 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Product Feartures
1) Installation area: They are ideal for applications in advertising, promotions, shopping malls, traffic control, concerts, sporting events.
2) Advertising forms: Texts, images, video, etc.
3) Brightness: 1200-1500 cd/㎡.
4) Large viewing angle Horizontal 120 degree, vertical 120 degree.
5) Design of low power consumption, no need cooling fan, meet the demand of quiet work environment.
6) They can be programmed and updated quickly. The standard software we create for updating displays is very user-friendly and intuitive.
