High resolution Indoor P4 LED Digital Screen
| Product Parameter |
Item | P4 Indoor Led Display |
Model Number | P4 |
Pixel Pitch | 4mm |
Pixel Density(dots/m²) | 62500 |
Pixel Configuration | 3IN1 |
LED Type | SMD2121 |
Module size(mm) | 256*128 |
Module Resolution(dots) | 64*32 |
Min.Viewing Distance(m) | ≤4 |
Brightness(cd/m²) | ≤1500 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 350-600w |
Scan Mode | 1/16 |
Protection Level | IP43 |
Cabinet Size(mm) | 512*512 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |

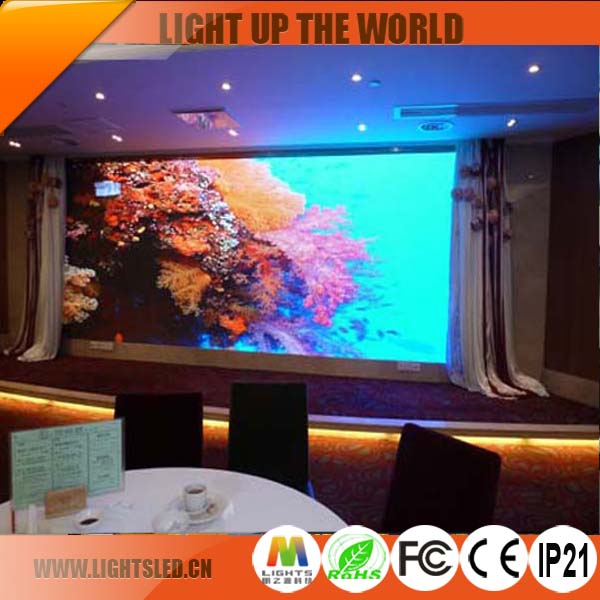

| Product Show |
Product Features
1) Competitive prices, reliable quality.
2) High brightness & High resolution.
3) High contrast ratio which ensures vivid images.
4) Low power consumption, environmentally friendly.
5) Wide viewing angle, 120 degree both horizontal and vertical.
6) Compatible software: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA.
7) Excellent after-sales service, three years warranty.
| Application |
| Certificates & partners |
| Payment |
| Shipment |
| Packing |
| FAQ |
1. What is LED?
LED stands for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor.
2. What are Pixel Pitch and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Configuration is the description of the consistence of a pixel.
3. What are LED Type, Module Size and Module Resolution?
LED Type is the description of LED lamp.
Module Size is the measurement of a module.
Module Resolution is the number of pixels per module.
4. What is Drive Method, Driving IC?
Drive Method uses static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former.
Driving IC is the generic term for several kinds of IC, which are used to control the LED lamps.
5. What is Viewing Angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance.
6. Are you factory?
Yes. We are factory.
