HD P2.5 Indoor Fixed LED Display
Product Description
Product Parameters

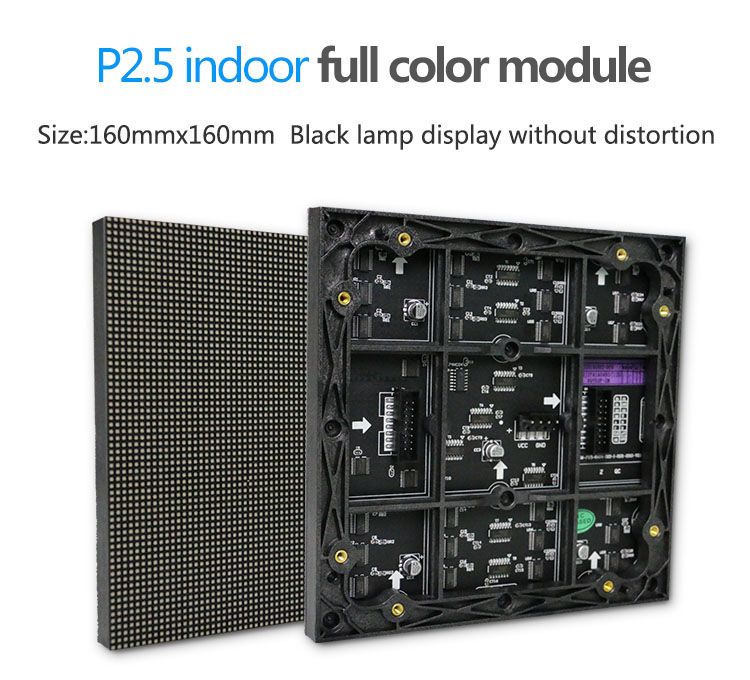

Item | P2.5 Led Display Module |
Model Number | P2.5 |
Pixel Pitch | 2.5mm |
Pixel Density(dots/m²) | 160000 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD2121 |
Module size(mm) | 160*160 |
Module Resolution(dots) | 64*64 |
Min.Viewing Distance(m) | ≥2.5 |
Brightness(cd/m²) | ≥1200 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 400-750 |
Scan Mode | 1/32 |
Protection Level | IP43 |
Cabinet Size(mm) | 480*480 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
