Alibaba Hot Indoor Ph2 Led Panel Pixel Pitch 2Mm Led Display Screen
Led Price Sign From China Factory
Specifications
Light Chip | |||
Type | SMD1010 black body | Chip parameters | Red λd:(620-625nm) IV:(800-960mcd) |
Color | 1R1G1B | Chip parameters | Green λd:(520-525nm) IV:(1350-1650mcd) |
Brand | Epistar | Chip parameters | Blue λd:(470-475nm) IV:(330-400mcd) |
LED Module | |||
Pixel Pixel | 2 mm | Module Size | 256*128mm |
Module Resolution | 128*64= 8192 Dots) | Module Weight | 0.25kg |
LED Display Cabinet | |||
Pixel Density | 65410 Dots/㎡ | Frame Frequency | no less than 60 frame/sec |
Cabinet Resolution | 128×128=16384(Dots) | Input Voltage | AC110-220V±10%,50/60Hz |
Cabinets Material | Aluminum-magnesium alloy Cabinet | Color Processing | R(1024)×G(1024)×B(1024) |
Cabinet Weight | 7 kg | Brightness Adjustment | 256 color levels |
Brightness | ≥800 - 1100 nits | MTBF( mean time between failures) | 5000 hours |
Viewing Angle | Horizontal 160°, Vertical 160° | Life-span | 100,000 hours |
Nearest Viewing Distance | 2 meter | Protection Level(front/back) | IP21 |
Power Consumption (Max) | 1100 w/㎡ | Malfunction Dot Rate | less than 0.0001 |
Power Consumption (Average) | 500 w/㎡ | Working Temperature | -30℃~50℃ |
Display Function | Text,Graphics,Video | Humidity | 15%~85% |
Refresh Rate | ≥1200Hz | Scan Mode | 1/32 |
Why Choose LightS Technology Co., Ltd
1.CCC,CE&Rohs CCC,ISO9001 approved
2.Life span:more than 100000hrs.
3.Excellent after-sales services with free repaire
4.Quanlity advantage,from material to finished product,from design to produce,we control all steps and guarantee the quality and reliability.
5.On stock(for some item)
6.We keep dedicating to provide the highest cost-dfficiency products
7.Automatic wave soldering ensure our tin points uniform and full,can greatly avoid the cold solder,dead solder,To guarantee the stability of our led screen.
8.Advanced technology IC built-in PCB front,IC fully sealed with silicone glue and PCB conformal coating process to protect them from water,oxidation and corrosion.

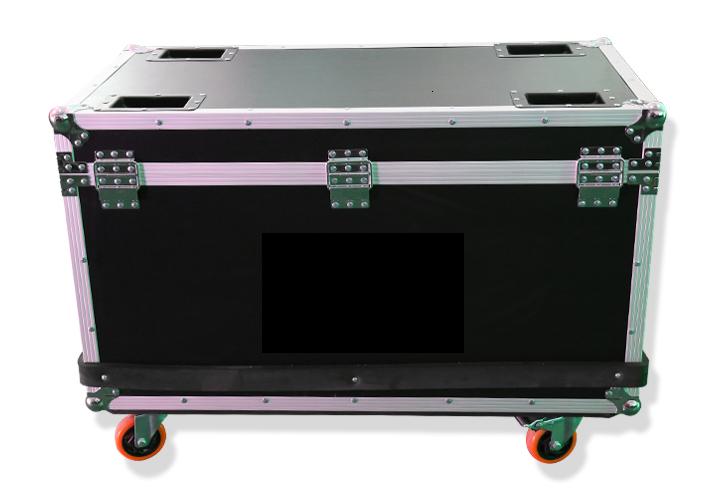

9.Our package type:wooden case suit for fixed installation.
light case is easy to move with wheels,usually use for rental business or constantly move requirement.
10.Prompt delivery: 4-10 days after get deposit.
