Description
Technical Parameters
| Pixel Pitch | 3mm |
| Pixel Density（dots/sqm） | 111111 |
| Module Size(mm) | 192mm*192mm |
| Module Resolution(dots) | 64*64 |
| LED Type | SMD2020 (3 in 1) |
| Brightness( cd/sqm） | ≥1000 |
| Scan Mode | 1/32 |
| Cabinet Size(mm) | Customized Size |
| Average Power Consumption(W) | 500-850 |
| Voltage | AC220v/50Hz Ac110v/60Hz |
| Protection Level | IP21 |
| Lifespan | 100000 |
| Refresh Rate | 1920Hz |
| Color | 64g color( on the condition of 4096 gray scale) |
| Horizontal/Vertical View Angle(degree) | 140° |
| Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Gray Scale | 14 BIT Recommended |
| Effective Communication Distance(without relay) | Unshielded twisted-pair (UTP) net line transmission distance is 100 meters, max transmission distance 130 meters |

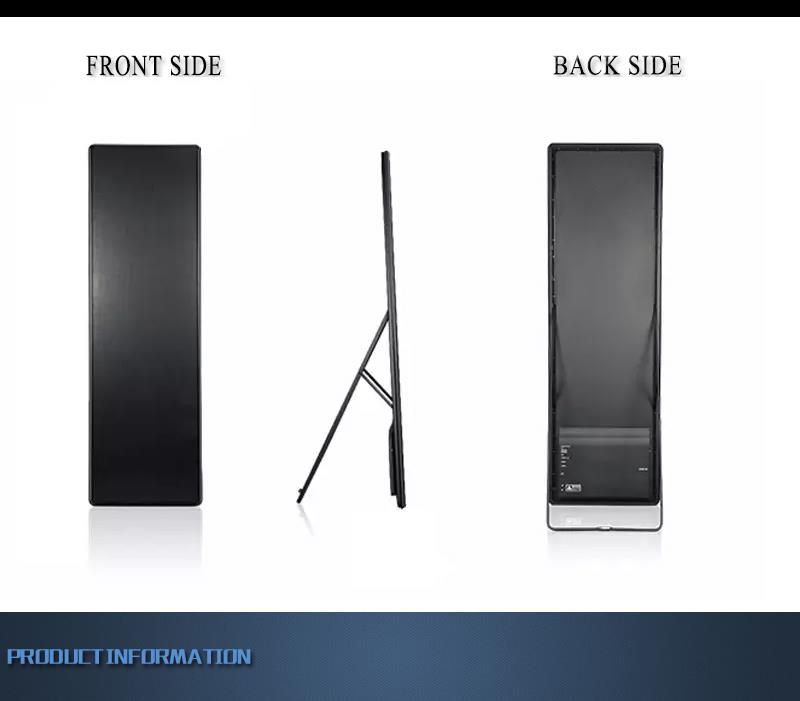

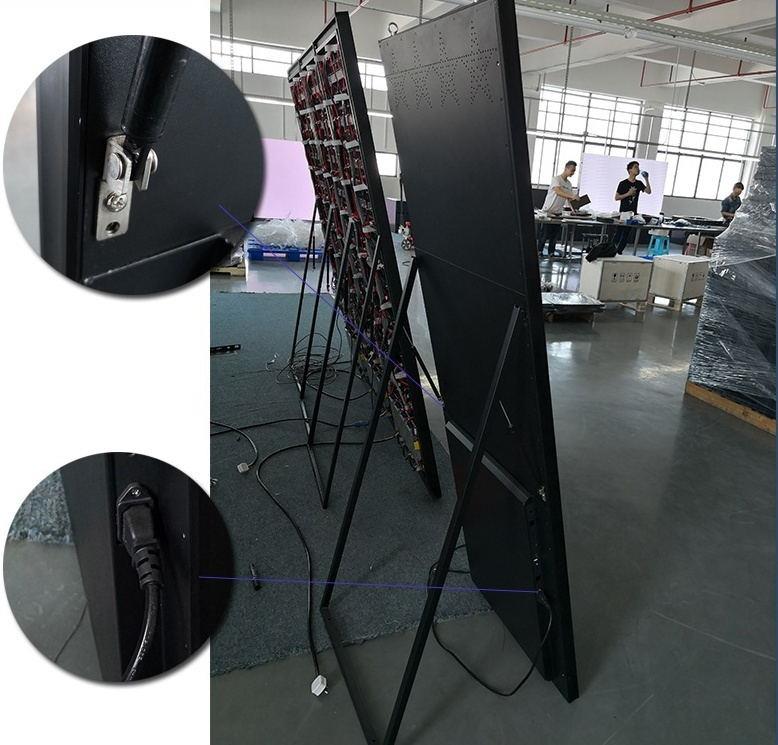

Ultra thin screen body, front maintenance, design to strive to present high-end atmosphere, fashionable and novel, flexible installation, to meet the installation needs of a variety of application scenarios.
The system adopts zero setting design, the operation is simple and convenient, the advertisement is plug and play, and the smart APP remote monitoring and management can be carried out through the mobile phone APP, so that everything is under control.
