1 High definition (10,000dots/sqm) with an outstanding image and video quality for indoor usage
2 Wide view angle:140 in horizonal and 90 in vertical.for indoor full color
3 High refresh rate (greater than 800Hz-4000Hz)with software adjustable, suitable for filming.
4 High gray scale (16 bits) with perfect visual performance.
5 High Contras ratio (3000:1) with black mask and black coating technique.
6 High color uniformity and clear image can bring you a vivid audio visual effect.
7 Special design and advanced SMT technology for indoor led screen
improves the heat dissipation for indoor led signboard
8 High reliability and long lifespan (MTBF ≥ 5000 hours).
9 Low power consumption(200w/sqm) thus more energy saving.
10 Cabinet type , Regular shape and special shape （such as curve, round),
Easy for assembling and connection with the connector added
11 Items: BESD-IFP4,BESD-IFP5,BESD-IFP6.BESD-IFP7.62,BESD-IFP8,BESD-IFP10
Image processing | Video de-noising , rapid motion compensation, edge sharpening, edge smoothing,color coordinate conversation& control , grey scale transformation etc |
Brightness uniformity | Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness) |
Effective control distance | Cat-5<100M,Multi-mode fiber:<500M;Single-mode fiber<20Km |
Color Temperature/contrast | Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable |
Input signal | RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION |
Control system | Sending card+ Receiving card+ Hub card+ DVI Card+ PCTV Non-liner card+ Multi-functional card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional) |
Model:BESD-IFP8 |
Pixel pith | 8mm | Module size(mm) | 256*128mm |
Pixel configuration | 1R1G1B ( 3in1 ) | Module density(dots) | 32 x 16dots |
View Angle | 140°/120° | Pixel density | 15625dots/㎡ |
LED encapsulation | SMD3528 3in1 | Refresh rates | ≥600Hz or ≥2000Hz |
Driving Method | 1/8 scan,constant current | Max power consumption | 600w/㎡ |
Cabinet size | Normal 640x 640mm or | Cabinet material | Aluminum alloy or Iron, Steel |
Cabinet thickness | < 8 cm or Designed by requirements | Cabinet weight | < 10kg/cabinet or Designed by require |
Brightness | >1600nits | Type Power consumption | 300w/㎡ |
Working voltage | AC110 / 220V +- 15% | Working temp | -20℃to +60℃ |
Best viewing distance | >6 m -300meter | Working humidity | 35%~85% |
LED parameters | R:620-625nm | MTBF | > 5,000hours |
G:520-523nm | Gray Level | > 8192 grade | |
B:467-470nm | Lifespan | > 100,000hours |

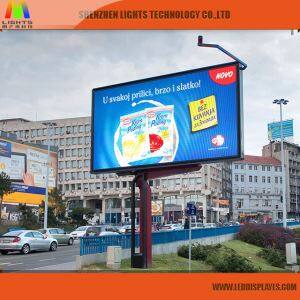

All weather proof, stable and reliable
IP65/IP55 rating for both waterproof and sunscreen, it is fully suitable for outdoor all-weather use. Good performance of dust-proof, moisture proof and corrosion ensures long-term use in harsh outdoor environments.
High-quality materials, safety certification
Adopts high-quality flame retardant materials and dual-use sheet metal for anti-UV and safer operational environment. In the meanwhile, L10D has passed rigorous testing and authentication, such as salt spray test, VDE certification etc. Durable plugs allows insertion and removal over 2, 000 times.
Excellent display quality, perfect picture
Up to 6000cd / m 簡 brightness, low-grayscale processing, even in direct sunlight, the picture is still clear.
EMC certification, safety and health
Products are designed in strict accordance with the requirements of the design to minimize radiation to reduce the impact on the environment and the harm to human body.
Environmental protection, energy efficiency
Adopt efficient PFC power supply, synchronous rectification to achieve a variety of functions, over-temperature protection, overload protection, over-current protection, short-circuit protection features that make conversion efficiency up to 90%, to ensure the stability of the LED display operation.
