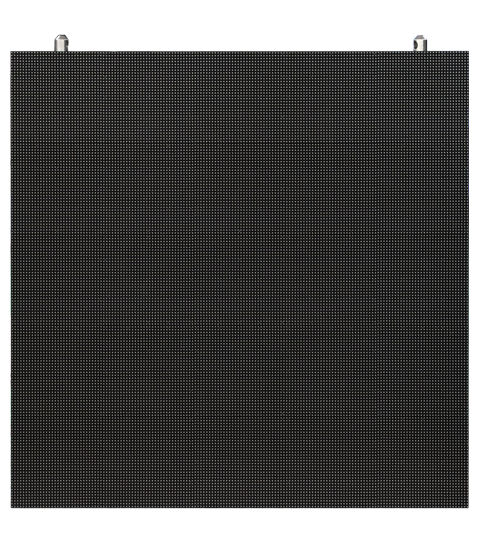

P3 Indoor Hd Full Color Led Screen Module
Quick Details
Pixel pitch 3 mm
- - - - - - - - - - - - - - - - - - - - - - - -
LED Type SMD2121
- - - - - - - - - - - - - - - - - - - - - - - -
Pixel Density 111111 pixels/㎡
- - - - - - - - - - - - - - - - - - - - - - - -
Refresh Rate >1200HZ
- - - - - - - - - - - - - - - - - - - - - - - -
Brightness 1500 cd/㎡
- - - - - - - - - - - - - - - - - - - - - - - -
Panel Size 576*576*110 mm
- - - - - - - - - - - - - - - - - - - - - - - -
Weight 25 Kg
Design of Shenzhen lights Indoor Fixed LED Display with the features of "light","thin", "fine", "penetrate ". Convenient installation, withstand wind and dustproof. Application for the stage and surrounding.
This product has been applicated at many fields such as stage, bar, entertainment TV and so on, it has been shown the unique artistic charm and aesthetic feeling of space imagination.The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology, it has the great expressive color.The product is with convenient installation, and flight connectors connecting. Now it has become the most popular fashion elements at the digital stage and bar.
High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect effect.
Cases For Study >>>>>
Project : Indoor Meeting Room Showing
Product : P3 Indoor HD LED Display
Project Size: (w) 3.84 x (h) 2.112 m
Date of Installation : October 26th, 2016
Location : Anshan, China
Item | P3 Indoor Full Color LED Display |
Model Number | P3 |
Pixel Pitch | 3mm |
Pixel Density(dots/m²) | 111111 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD2121 |
Module size(mm) | 192*192 |
Module Resolution(dots) | 64*64 |
Min.Viewing Distance(m) | ≥3 |
Brightness(cd/m²) | ≥1200 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 400-750 |
Scan Mode | 1/16 |
Protection Level | IP21 |
Cabinet Size(mm) | 576*576 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is 300-600HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Product Features
1) High brightness and stable performance lead long lifespan and low power consumption.
2) Accurate color uniformity and smoother,flicker-free video displaying.
3) Wide viewing angle, high contrast, high brightness (adjustable), high intensity (14bit gradation processing), high refresh, softer image, display lifelike images to meet the high-speed motion picture display.
