P8 electronics digital led billboard

P8 full color outdoor advertising screen
Certainly the best option for outdoor advertising, this LED display carries some features that make it highly suitable for outdoor areas. It can work in different brightness level and outdoor circumstances. Rental led display can also be used at stage, bank, promotion, exhibition, station, KTV, stadium, airport and other outdoor places.
High IP Rating IP65- Safe and Reliable
The special waterproof design of LED Screen protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP65 ensures great quality outputs in every condition.

Get Every Detail in Picture
We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.
Wide Viewing Angle for Broader Reach
The display features a wide viewing angle of 140° horizontal and 120° in vertical which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering. -

High Gray Scale - Better Picture
The outdoor LED Display is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless.


Strict Aging Test
All products undergo a strict aging test. The 24 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.

Detailed Images
P8 led module
1. SMD3535
2. Module size: 320*160mm
3. Module Resolution: 40*20dots
4. scan mode: 1/5 or 1/4 scan

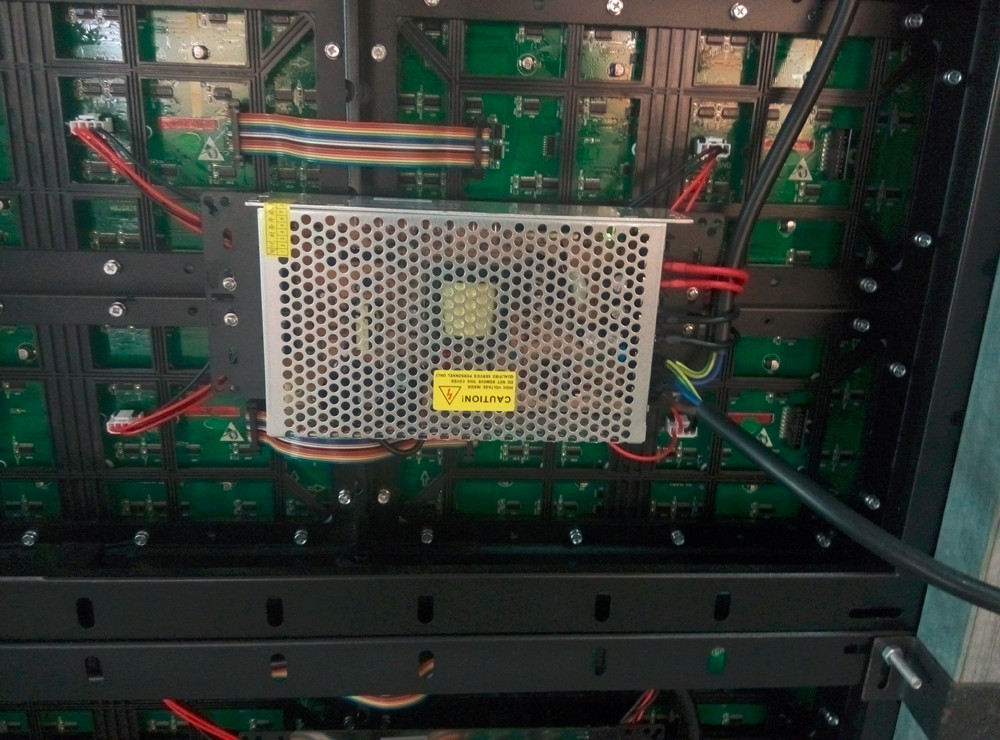

Power supply
1. G-energy/Rong-Electronic/MW power supplies

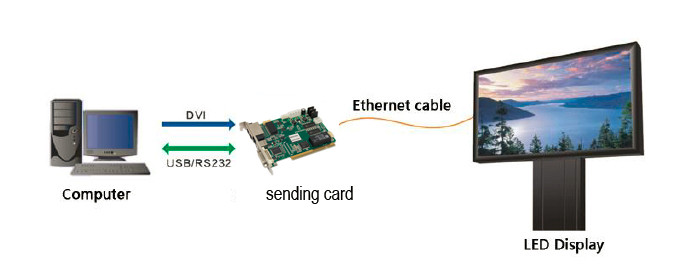

2. Novastar/Linsn/Colorlight/Showbox control system
cabinet
1. Waterproof iron cabinet
2. size: 640mmx640mm(customization)
Model No: | OF8 |
Pixel Pitch | PH8mm(Outdoor) |
Module Resolution(W*H) | 32(W)*16(H) |
Pixel Configuration | 1R1G1B(3 in 1) |
LED Encapsulation | White SMD 3535 |
Pixel Density | 27777 Pixel /m2 |
module size | 320*160mm |
Driving Method | 1/5 or 1/4 scan |
Refresh Frequency | >1000HZ |
Driver IC | MBI5124 |
Grey Scale | 14Bit(depending on the system and IC configuration) |
Cabinet Size | 640*640mm |
Brighthess | 5800/6200nits |
weight | 40KG/PCS |
Color Temperature | 8000K±500(adjustable) |
Viewing Angle | Horizontal 140°Vetical 120° |
Optimal Viewing Distance | >8m |
Working Voltage | AC 220V/110V±10% |
Module voltage | DV 5V |
Max Power Consumption | 500W/sqm |
Avg.Power Consumption | 250W/sqm |
Life time | 50000 hours |
Operating Temperature | –10℃ ~ 65℃ |

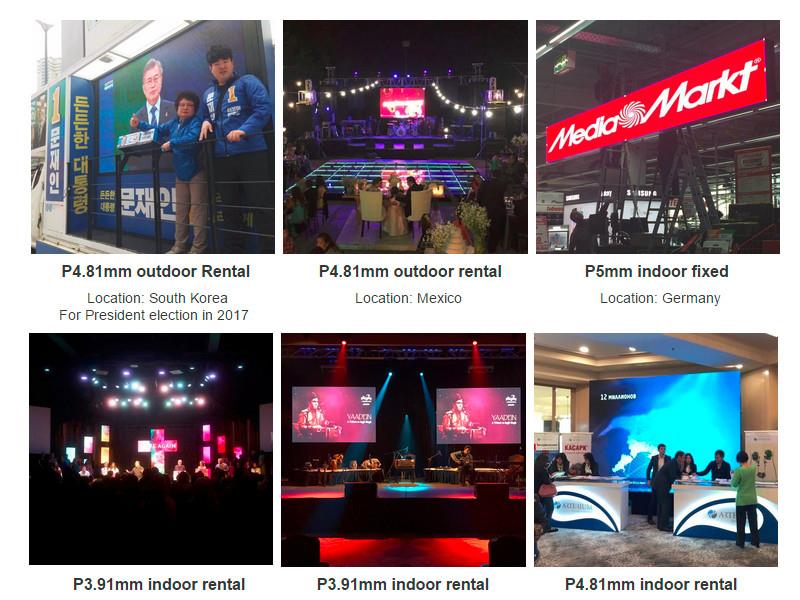

Projects
