P3 Indoor LED Displays Features:
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging
technology for nice image.

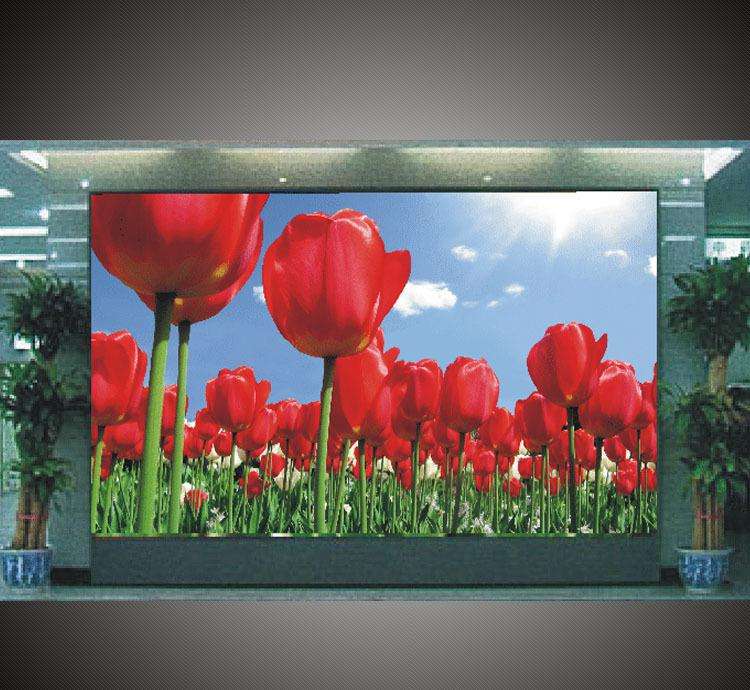

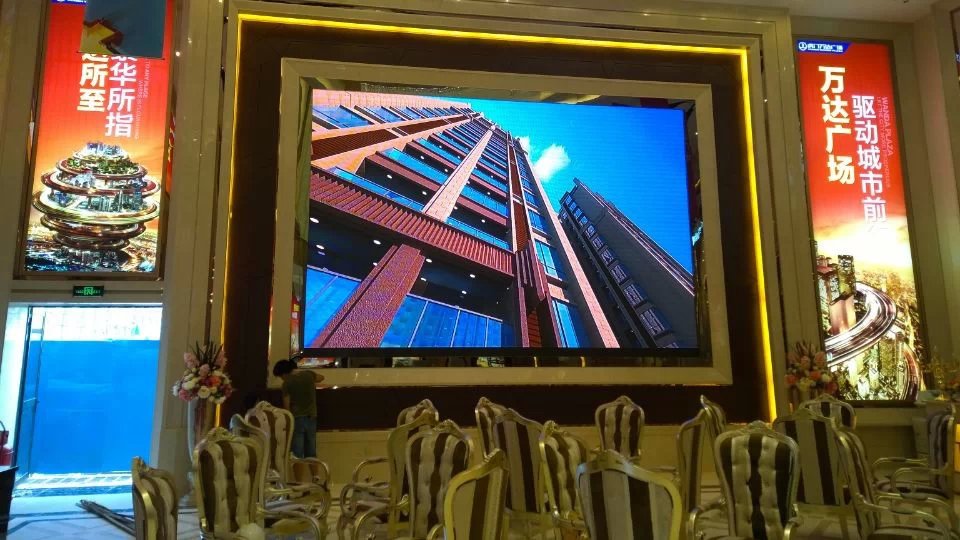

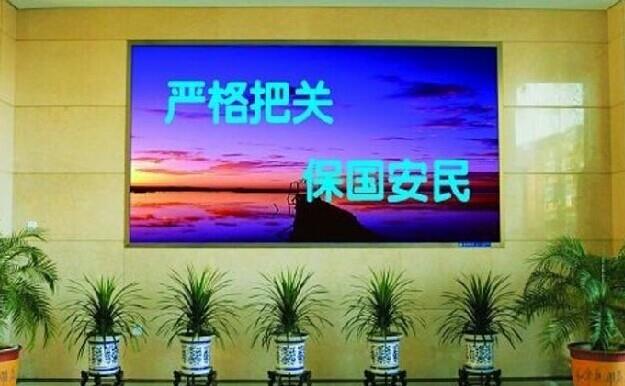

P3 Indoor LED Displays Applications:
For TV studios,live shows,concerts and indoor events.

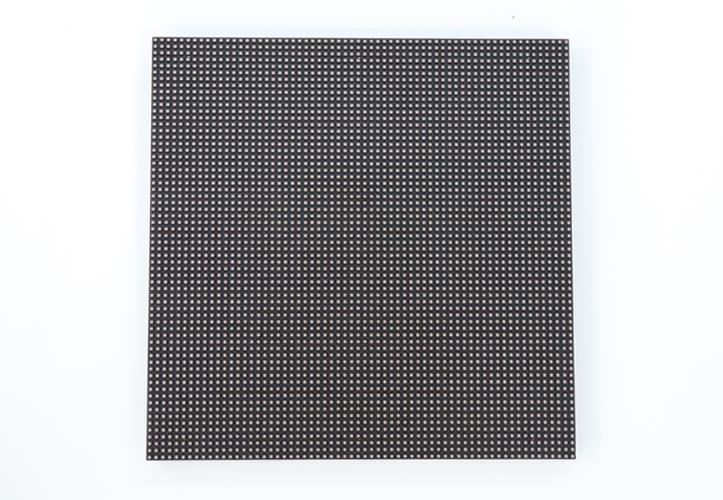

LED Module
Specifications
Pixel Information | Pixel Pitch | 3mm |
Pixel Density | 111111Pixels/m2 | |
Pixel Configuration | SMD2121 | |
LED Module | Module Size(mm) | 192× 192mm |
Module Resolution | 64× 64mm | |

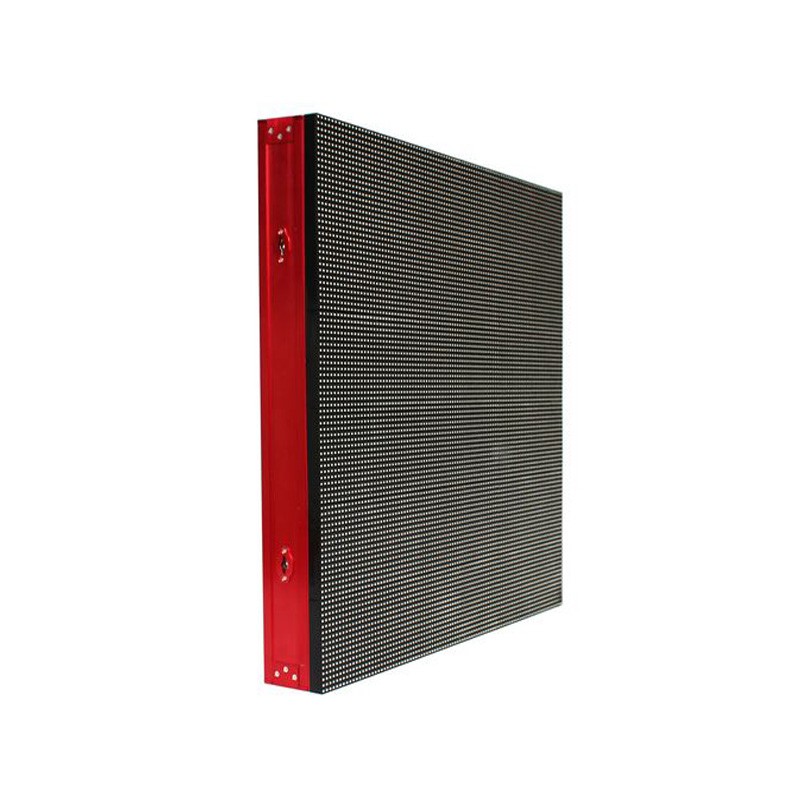

Cabinet | Cabinet Size(mm) | 576*576mm |
Cabinet Weight | 30kg/㎡ | |
Power | Input Voltage | 100-240V AC, 50/60Hz |
Max Power Consumption | 600 Watt/㎡ | |
Avg. Power Consumption | 350 Watt/㎡ | |
Brightness | ≥1200cd/m2 | |
Best Viewing Angle | Horizontal:140°,Vertical:140° | |
Ambient Conditions | Temperature Range | Working:-20deg. to +65deg |
Operating Humidity | 10%-90%RH | |
Ingression Protection Grade | IP21 | |
Processing | Scanning Mode | 1/32 scan |
Refresh Frequency | 1200HZ, Adjustable(depends on control system) | |
Signal Input | DVI, Composite Video for Live Video | |
Supported Networking | Through LAN/WAN, RS 232/RS485 |
