HD P3.91 indoor glass LED large screen
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:Lights
Model Number:P3.91
Usage:Indoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:3.91mm
Screen Dimension:
Customized, 500*1000mm
Module resolution:
64x64 dots
Module Dimension:
250x250mm
LED encapsulation:
SMD2020
Pixel configuration:
3IN1
Cabinet Material:
Die-casting aluminum
Cabinet resolution:
128*256 dots
Certificate:
CE ROHS IP65
Warranty:
2 Years
Packaging & Delivery
Packaging Details
Wooden case or flight case
Delivery Time
Shipped in 20 days after payment
Product Description
| HD P3.91 indoor glass LED large screen | |||||
| Specification | |||||
| Module | |||||
| Model No. | P3.91 | ||||
| Pitch | 3.91MM | ||||
| Screen mode | Real Pixel | ||||
| Physical density | 32768 Pixels/m² | ||||
| Module size | 250X250MM | ||||
| Module resolution | 64x64 | ||||
| LED type | SMD2020 | ||||
| Cabinet | |||||
| Resolution | 128X256pixels | ||||
| Width | 500mm | ||||
| Height | 1000mm | ||||
| Depth | 45mm | ||||
| Weight | 14KG/sqm | ||||
| LED panel | |||||
| Brightness | ≥1500 NIT | ||||
| Flatness | Gap≤0.5mm | ||||
| Grey scale | 16384 levels | ||||
| Screen color | 281 trillion | ||||
| Scan method | 1/16 | ||||
| Operation power | AC110V/220V, 50/60Hz | ||||
| Control Mode | Synchronous display with control PC by DVI | ||||
| Screen Refresh Frequency | 1200Hz | ||||
| View angle | Horizontal: 90° - 130°, Elevation: 30° - 45°, Depression: 10° - 20° | ||||
| Support Input | composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA | ||||
| Control Distance | Ethernet cable≤120m or Fiber Optic>120m | ||||
| Brightness Correction | pixel, module, cabinet | ||||
| Operating humidity | 10% - 95% RH | ||||
| Operating life | 100,000 hours | ||||
| MTBF | 5000 Hours | ||||
| Protection level | Indoor use | ||||
| Out of control rate | 0.02% | ||||
Product:

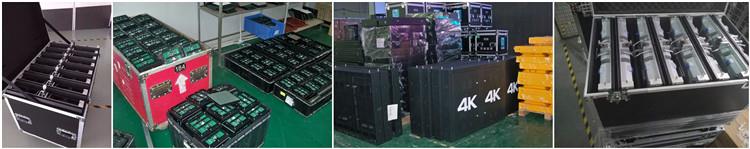

Packaging & shipping

Our factory:
