Product Features

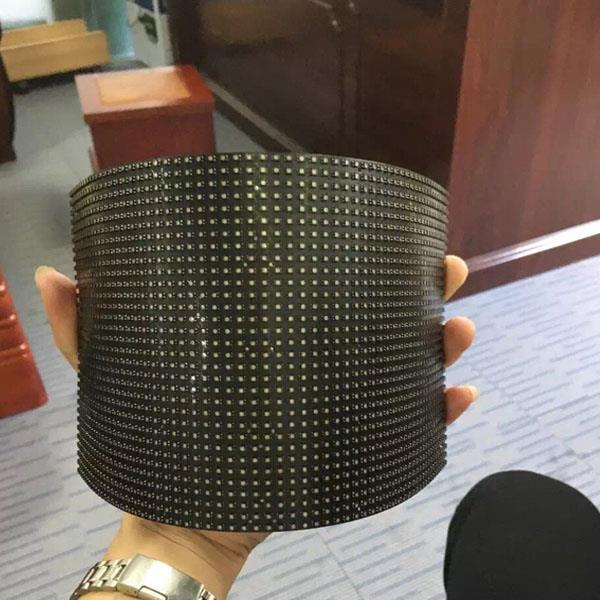

1.P4 LED flexible screen module with small-unit and flexible design,makes possibility of more complicated shapes for the video show.
2.P4 flexible LED video screen magnet connection,easy to assemble & disassemble,it is frontal service maintenance.
3.No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
4.You Assembling screen with LED flexible screen soft led modules directly,saving time and effort,easy operation.
5.Strict quality control and long-term application experience verified the stability and excellent performance by using Nastionstar LED, and MBI5124 Driving IC for high refresh rate and performance.

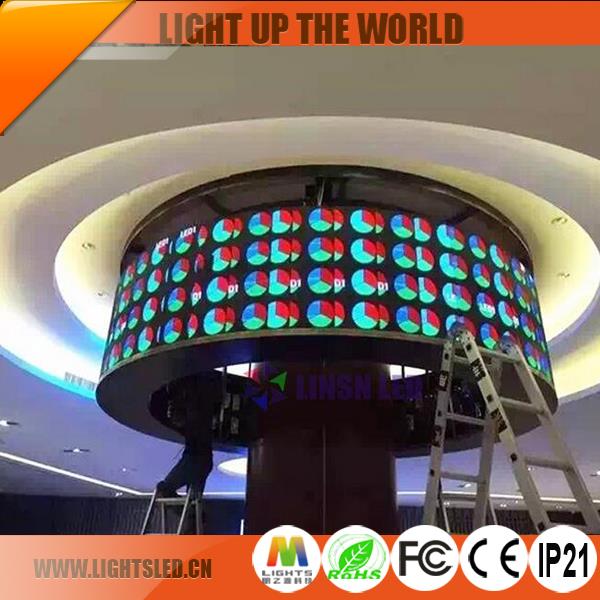

6.Widely applied in shaped stage background/exhibition/shopping mall etc.

Screen Description
Item: Flexible LED Display Panels
Model Number: P4
Pixel Pitch: 4mm
Pixel Density(dots/m²): 62500
Pixel Configuration: RGB
LED Type: SMD2121
Module size(mm): 256*128
Module Resolution(dots): 64*32
Min.Viewing Distance(m): ≥4
Brightness(cd/m²): ≥800
Viewing Angle(degree): ≤120°
Average Power Consumption(w/m²): 300-750
Scan Mode: 1/16
Protection Level: IP21

Advantages&function
1.Flexible and bendable
The flexible chassis and soft cover design enable user to bend it freely, so it can be assembled at any
uneven or irregular locations.
2.Super thin and light
Flexible LED Sign is one of the thinnest &lightest LED signs in the world with special materials and advanced technology .Every module is only 9mm thick and has a weight of 450g.
3.Easy to splice, install and maintain
Modularization design and no other connected cables make the installation so convenient
4.Low power consumption
5.Wide application
Can be used in so many fields and occasions ,especially in all kinds of irregular buildings .For example hotel advertising,stage renting,television,shopping malls,big markets,outdoor stadiums,concerts, fairground ,sightseeing districts, etc...
