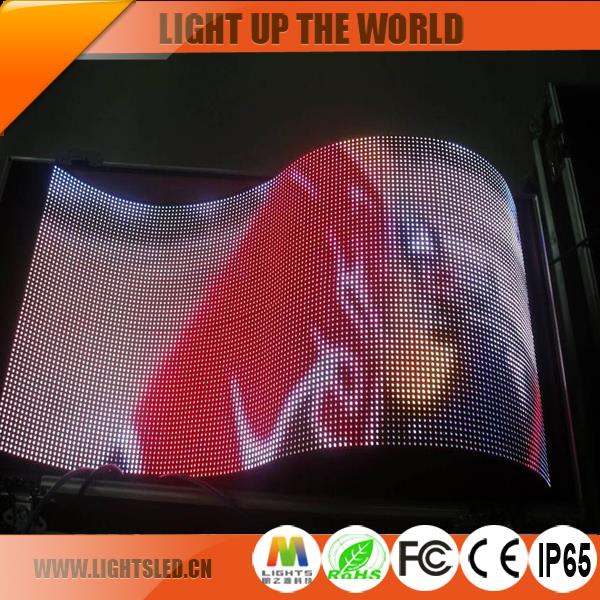

P6 Led Curved Video Wall Soft Module
Panel Features:
soft led module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving, it won't break LEDs as well design of mask covers.
1.Module with small-unit and flexible design,makes possiblity of more complicated shapes for the video show.
2.Assembling screen with soft led modules directly,saving time and effort,easy operation.
3.Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.
4.No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
5.Strict quality control and long-term application experience verified the stablity and excellent performance by using Epistar LED, and MBI5124 Driving IC for high refresh rate and performance.
6.Widely applied in shaped stage background/exhibition/shopping mall etc.
Item | P6 LED Flexible Digital Display Bendable Soft Screen |
Model Number | P6 |
Pixel Pitch | 6mm |
Pixel Density(dots/m²) | 27777 |
Pixel Configuration | RGB |
LED Type | SMD3528 |
Module size(mm) | 192*192 |
Module Resolution(dots) | 32*32 |
Min.Viewing Distance(m) | ≥6 |
Brightness(cd/m²) | ≥1000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m²) | 240-480 |
Scan Mode | 1/16 |
Protection Level | IP21 |
Cabinet Size(mm) | Customized |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level: Color temperature is adjustable in terms of detailed requirements |
Working temperature | -20°C~80°C Life Span :100,000hours |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Control Type | 3G/ WiFi /USB Memory: 4G |
Flexible LED Display Panel Advantages:
1.High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2.Constant current chip driving IC MBI514 to reduces the power consumption and prompts the stability,Simple modular design for easy maintanence.
3Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.

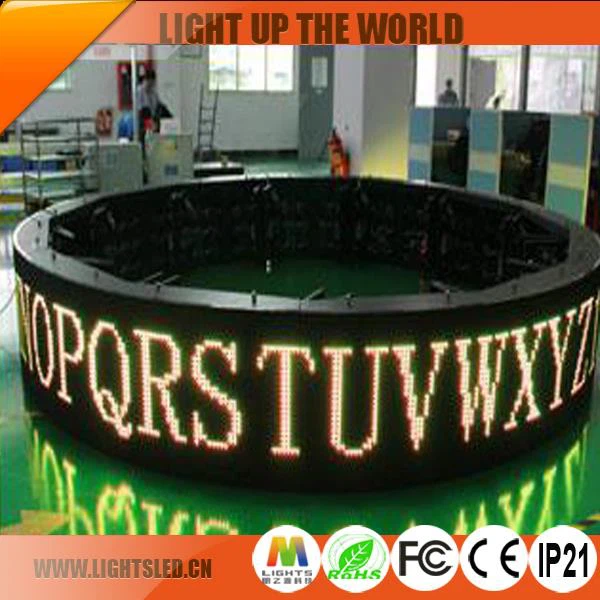

4.Due to its locating holes and 4 in bracket design,it can be used on indoor curved led display and circle led screen.
5.Besides,high definition effect comes with color uniformity and soft color is suitable for indoor close range viewing.
