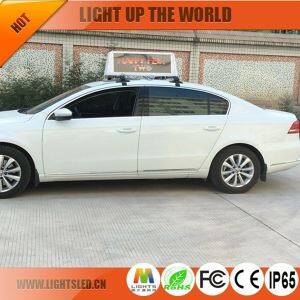

P4 P5 Full Color Outdoor Taxi Top Led Display
1.High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2.Constant current chip driving reduces the power consumption and prompts the stability,Simple modular design is low cost and easy to maintain.
3.Can undertake single point,single lamp maintenance,the cost is low.
4.Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
5.Besides,high definition effect comes with uniform luminance and soft color is suitable for indoor close range viewing.
| Pixel pitch (mm) | 4 | 5 |
| LED type | SMD2727/SMD3528 | |
| LED chip | Epistar/Nationstar | |
| Module size(mm) | 320*320 | |
| Module resolution (dots) | 80*80 | 64*64 |
| Brightness(dots/㎡) | 3500-7000 | 2000-7500 |
| Average power(w) | 300-750 | 300-700 |
| Warranty | 3 Years | |
| Cabinet size(mm) | customized | |
| Refresh rate(hz) | 1200 | |
| Input voltage | AC220V/50HZ or AC110V/60HZ | |
| Scan mode | 1/4 or 1/8 | |
Product Description
Packaging & Shipping

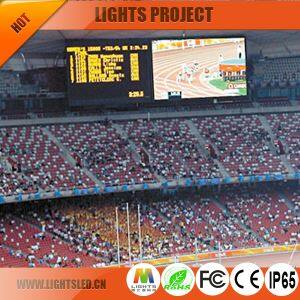

Hot sale recommended
