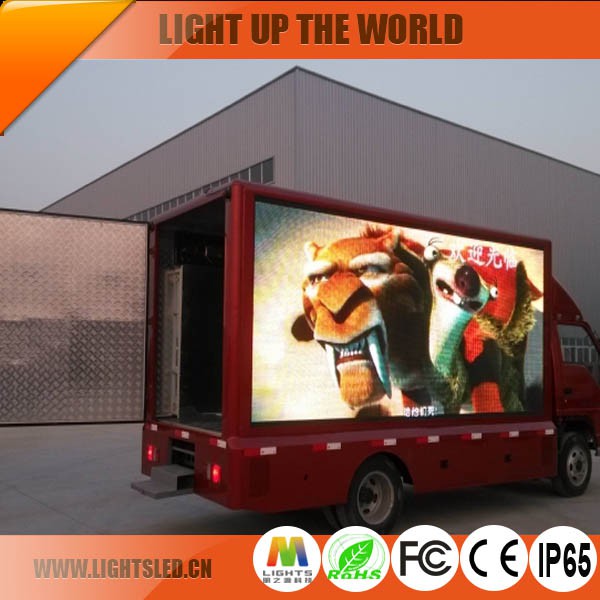

P8 Car Moving Advertising LED Display
P8 Outdoor Mobile LED Video Display
Pixel pitch: 8mm
Refresh rate: 1200Hz
Brightness: ≥6500CD/㎡
Cabinet Size: 768*768*150mm
Cabinet Weight: 45kg
Aerofoil fan, cooling immediately
There are 4 aerofoil fans in each OF12 cabinet, ventilation volume is 5.6 cubic meter per minute, air circulation 20 times very minute inside the OF10 cabinet. High efficieny cooling.
Item | P8 SMD Mobile Large LED Screen LED Billboard Price Advertising Truck Display Made in China |
Model Number | P8 |
Pixel Pitch | 8mm |
Pixel Density(dots/m²) | 25625 |
Pixel Configuration | RGB |
LED Type | SMD3535 |
Module size(mm) | 256*128 |
Module Resolution(dots) | 32*16 |
Min.Viewing Distance(m) | ≥10 |
Brightness(cd/m²) | ≥7000 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(w/m²) | 550-850 |
Scan Mode | 1/16 |
Protection Level | IP65 |
Cabinet Size(mm) | 1280*1024 |
Color Temperature | The brightness of R.G.B.is adjustable according to software 100level:Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
Color | 64g color(on the condition of 4096 gray scale) |
Horizontal/Vertical viewing angle | <120° |
Gray Scale | Recommended 14BIT |
Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters, max transmission distance is 130 meters. |
1.LED screen resolution（P10、P8、P6）
2.surface color painting（according to client's request）
3.Double sides LED screen or Triple sides LED screen.
4.Hydraulic stage、fence、pedal、ladder
5.video processor
6,asynchronous control system
