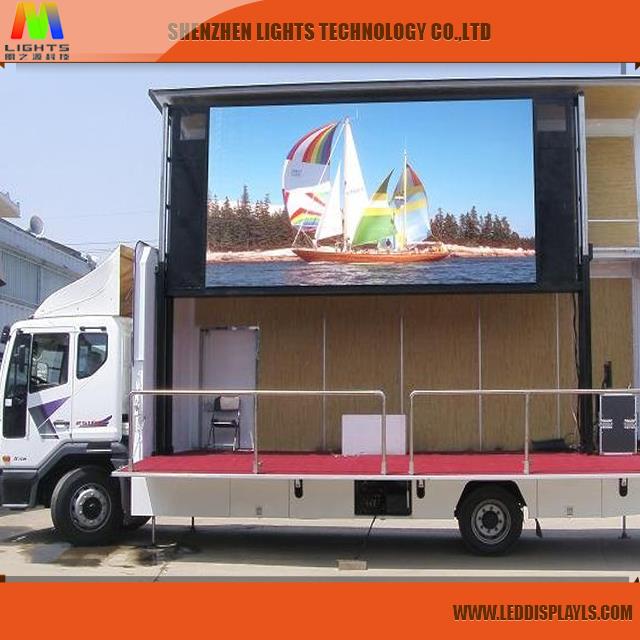

P16 led mobile advertising trucks display screen
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Lights
Model Number:
P16-DIP
Usage:Outdoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:16mm
Screen Dimension:
Customized Size
Product name:
P16 led mobile advertising trucks display screen
Control method:
Synchronous or Asynchronous
controller software:
LINSN,NOVA,Colorlight,ect
Life span:
100000hours
Warranty:
1year/2year/3year
Certificate:
CE RoHS IP65 ISO9001 Certifications
Advantage:
attractive in price and quality
Packaging & Delivery
Packaging Details
carton,wooden case, flight case
Delivery Time
Shipped in 20 days after payment
Product Description
Led display screen specification
P16 outdoor DIP technical parameters(only for reference,Exactly according to the real screen module)
| Item | Parameter |
| Model number | P16 |
| Module size | 256x256mm |
| Pixel pitch | 16mm |
| Pixel density | 3906dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | DIP346 |
| Pixel resolution | 16dots(W)*16dots(H) |
| Max Power | 40W |
| Module thickness | 30mm |
| Weight | 1.1kg |
| Drive type | constant drive |
| scan mode | static |
| Port type | hub75 |
| Brightness of white balance | ≥7000cd/m2 |
Cabinet Parameters
| Dimension | 1024mm*1024mm |
| Monomer Module Number | 16 |
| Power supply | 5V/40A*4pc |
| Thermal discharge | anto |
| Pixel per cabinet | 48*48dots |
| Best viewing distance | 6M~40M |
| Best viewing angle | 140°(W)120°(H) |
| Temperature | storage:-35°C~+85°C working:-20°C~+50°C |
| Relative humidity | 10%~95% |
| Thickness | 160mm |
Screen Parameters
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 500W/m2 | |
| Max Power consumption | ≤900W/m2 | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation systerm | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096 gray level/16.7M colors | |
| MTBF | ≥10000hours | |
| Fire rate | grade one | |
| Display Mode | ≥800*600/1024*768 |

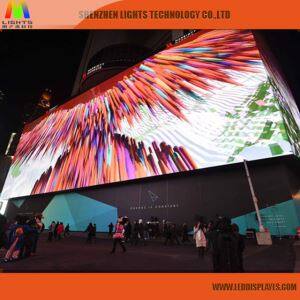

led display screen pictures:


More outdoor led display module:

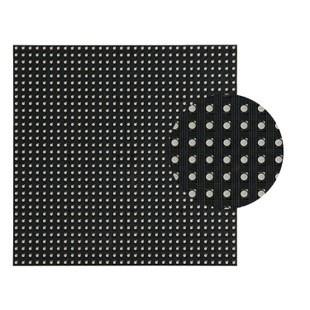

Outdoor p6 outdoor p5


outdoor p8 outdoor p10
Certification:
